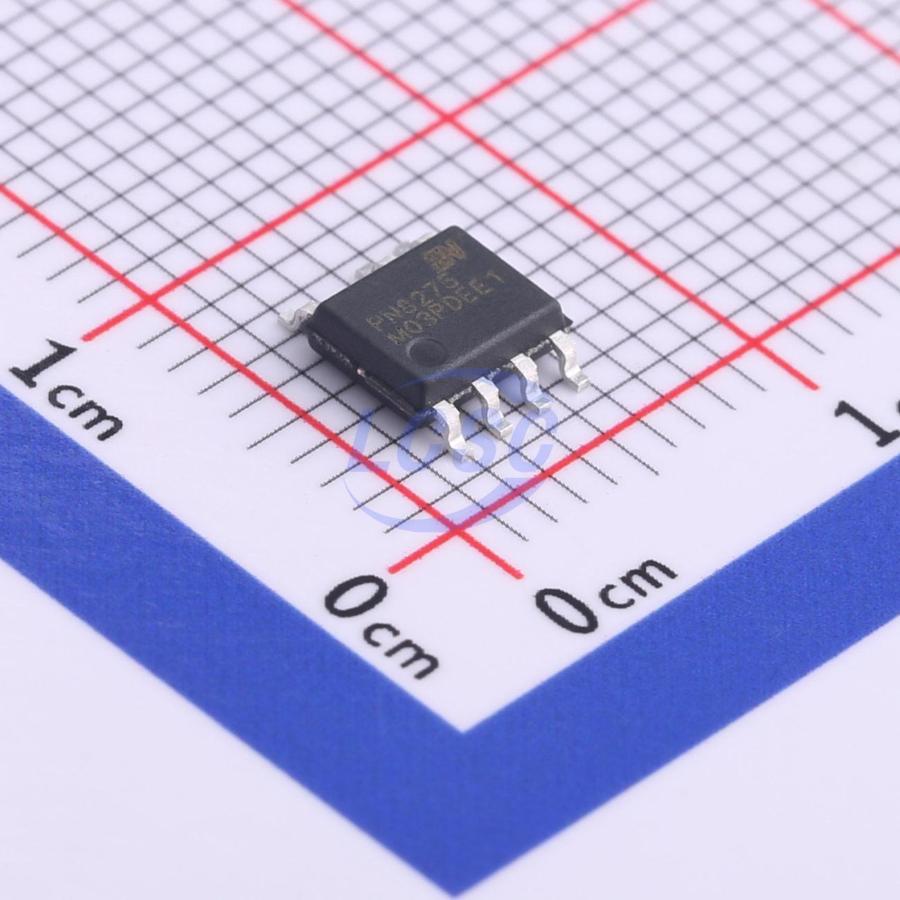

Wuxi Chipown Micro-electronics

PN8275SSC-R1P

Converter Offline 60kHz~70kHz SOP-7

SOP-7ROHS CompliantActive

Quasi-resonant AC-DC conversion chip with high-voltage startup module

Manufacturer: Wuxi Chipown Micro-electronics
Manufacturer part #: PN8275SSC-R1P
Store part #: C840731
Package / case: SOP-7
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,395 in stock

#C840731

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹60.92	₹60.92
10+	₹48.18	₹481.80

Quantity (min 1)

1 × ₹60.92

₹60.92

excl. GST

₹71.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

PN8275SSC-R1P

₹60.92 for 1 + GST

Specifications

Operating Temperature: -40℃~+150℃
Frequency - Switching: 60kHz~70kHz
Voltage - Breakdown: 830V
Voltage - Supply: 8V~40V
Topology: Flyback
Features: Soft-start;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
Duty Cycle(Max): 90%
Feedback System: Secondary-Side Feedback
Working Mode: QR;PWM Modulation;PFM Modulation

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.194 g

Overview

The PN8275 integrates a current-mode controller and a high-voltage startup module, designed for high-performance AC/DC switching power supplies with a minimized external component count. The IC achieves ultra-low standby power consumption and optimal efficiency across the full voltage range through a hybrid modulation scheme combining QR-PWM, QR-PFM, and Burst-mode, along with a special low-power device architecture. Frequency modulation and SoftDriver technology ensure excellent system EMI performance. In addition, the PN8275 provides comprehensive, high-performance intelligent protection features, including input under/overvoltage protection, X-capacitor discharge, output overvoltage protection, external OTP protection, cycle-by-cycle overcurrent protection, overload protection, and soft-start.

Applications

Standby power supply
Open-frame switching power supply adapter

Key features

Built-in high-voltage startup circuit
QR-PWM, QR-PFM, Burst-mode hybrid mode for improved efficiency
Built-in input undervoltage protection (PN8275B)
Built-in input overvoltage protection (PN8275P)
Built-in X-capacitor discharge function (certified to IEC62368-1:2014)
No-load standby power < 50 mW @230VAC
Frequency modulation for improved EMI
Supply voltage 8~40V, suitable for wide output voltage applications
Line voltage compensation externally adjustable
Comprehensive protection features: OTP, output OVP, cycle-by-cycle OCP, output open/short-circuit protection, patented DMG resistor short-circuit protection, secondary rectifier short-circuit protection, overload protection
