HXY MOSFETDatasheet (PDF)

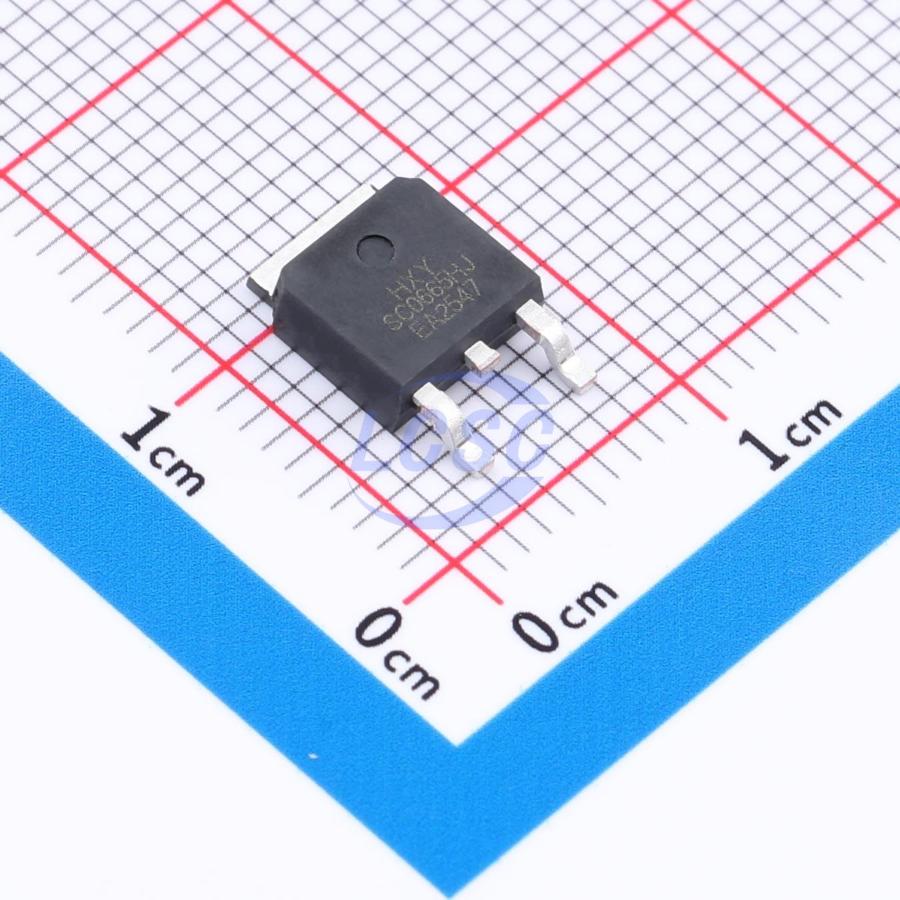

PSC0665HJ-HXY
1 Independent 650V 1.3V@6A 23A TO-252-2L Single Diodes
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- PSC0665HJ-HXY
- Store part #
- C53468017
- Package / case
- TO-252-2L
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C53468017
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹255.46 | ₹255.46 |
| 10+ | ₹217.25 | ₹2,172.50 |
| 30+ | ₹193.12 | ₹5,793.60 |
| 100+ | ₹168.76 | ₹16,876.00 |
| 500+ | ₹157.64 | ₹78,820.00 |
| 1,000+ | ₹152.82 | ₹1,52,820.00 |
1 × ₹255.46
₹255.46
excl. GST
₹301.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PSC0665HJ-HXY
₹255.46 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.3V@6A
- Reverse Leakage Current (Ir)
- 50uA@650V
- Non-Repetitive Peak Forward Surge Current
- 48A
- Current - Rectified
- 23A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.404 g
Overview
This product series delivers state-of-the-art performance. It is designed for high-frequency applications requiring high efficiency and reliability.
Applications
- Uninterruptible Power Supply (UPS)
- Power Inverters
- High-Performance Switched-Mode Power Supplies (SMPS)
- Power Factor Correction
Key features
- Low conduction loss due to low VF
- Ultra-low switching loss due to minimal QC
- High durability with superior surge current capability
- Industrial-standard quality and reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HFFSD0665A#C42389257HXY MOSFET · TO-252-2L(DPAK) | HXY MOSFET | TO-252-2L(DPAK) | 31 | ₹151.22 · 31 in stock | View |
 | GP2D006A065C-HXY#C53468010HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 49 | ₹370.27 · 49 in stock | View |
 | DSC06C065D1-13-HXY#C53468011HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 46 | ₹139.80 · 46 in stock | View |
 | DSC06065D1-HXY#C53468016HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 49 | ₹379.93 · 49 in stock | View |
 | DSEP6-06AS-TRL-HXY#C53468018HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹201.10 · 48 in stock | View |
