VBsemi ElecDatasheet (PDF)

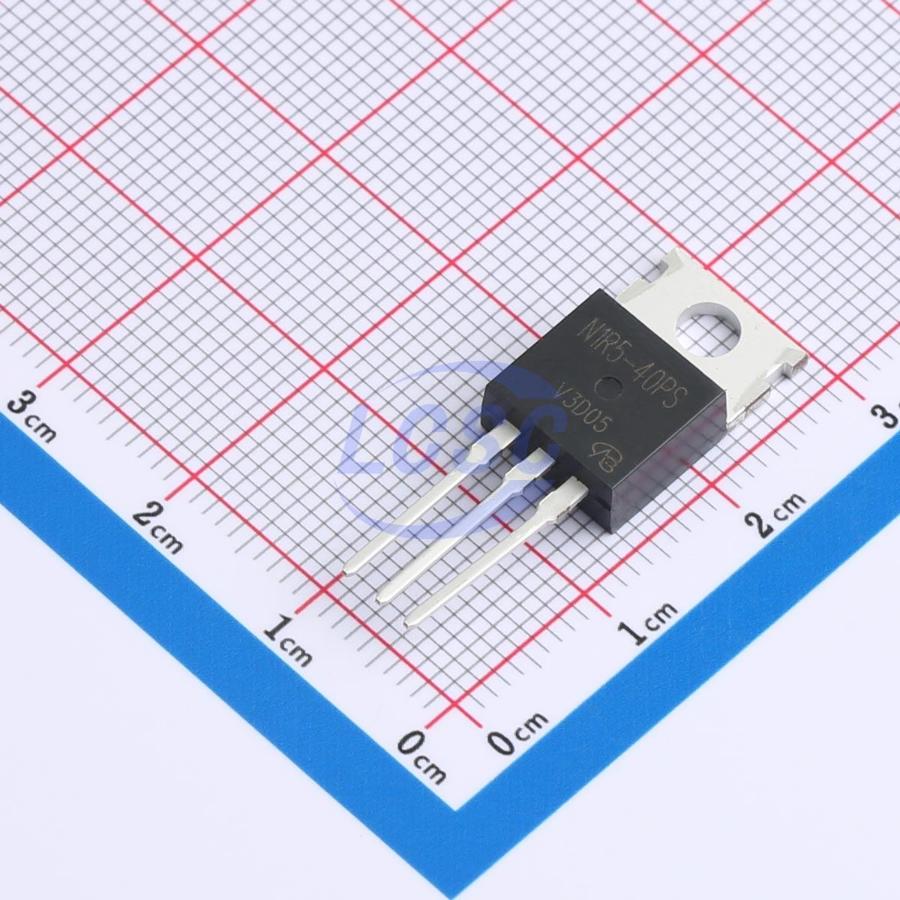

PSMN1R5-40PS-VB
N-Channel 40V 180A Through Hole TO-220AB
TO-220ABROHS CompliantActive
MOSFET N-CH 40V 180A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PSMN1R5-40PS-VB
- Store part #
- C7568903
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7568903
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹201.03 | ₹201.03 |
| 10+ | ₹167.84 | ₹1,678.40 |
| 50+ | ₹149.57 | ₹7,478.50 |
| 100+ | ₹128.77 | ₹12,877.00 |
| 500+ | ₹119.52 | ₹59,760.00 |
| 1,000+ | ₹115.33 | ₹1,15,330.00 |
1 × ₹201.03
₹201.03
excl. GST
₹237.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
PSMN1R5-40PS-VB
₹201.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 180A
- Ciss-Input Capacitance
- 9nF
- Reverse Transfer Capacitance (Crss)
- 450pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 120nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
Applications
- Synchronous rectification
- Power supply
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PSMN2R1-40PLQ-VB#C52148728VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹208.99 · 10 in stock | View | |
 | BUK753R1-40E,127-VB#C52191078VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹208.99 · 5 in stock | View |
 | BUK7531R-40E127-VB#C52209342VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹208.99 · 10 in stock | View |
 | IRF1404ZPBF-VB#C7463516VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 28 | ₹234.48 · 28 in stock | View |
 | CSD18502KCS-VB#C18212515VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 19 | ₹180.91 · 19 in stock | View |
