YAGEODatasheet (PDF)

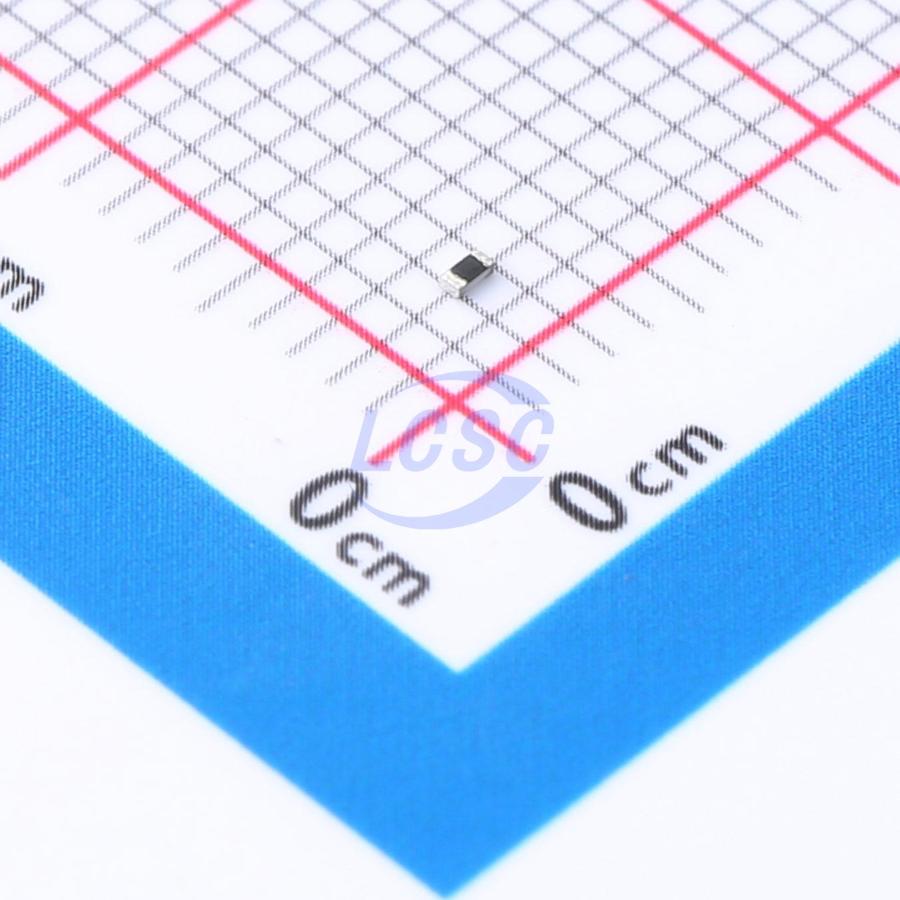

PT0402FR-7W0R1L
125mW 100mΩ Thick Film Resistor ±1% ±200ppm/℃ 0402 Chip Resistor - Surface Mount RoHS
0402ROHS3 CompliantActive
RES 0.1Ω ±1% 125mW 0402
- Manufacturer
- YAGEO
- Manufacturer part #
- PT0402FR-7W0R1L
- Store part #
- C2139031
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,950 in stock
#C2139031
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.54 | ₹127.00 |
| 500+ | ₹2.18 | ₹1,090.00 |
| 1,500+ | ₹1.98 | ₹2,970.00 |
| 10,000+ | ₹1.86 | ₹18,600.00 |
| 20,000+ | ₹1.75 | ₹35,000.00 |
| 50,000+ | ₹1.69 | ₹84,500.00 |
50 × ₹2.54
₹127.00
excl. GST
₹149.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PT0402FR-7W0R1L
₹127.00 for 50 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 100mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±200ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.009 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RCWE0402R100FNEA#C4122454VISHAY · 0402 | VISHAY | 0402 | 10,005 | ₹11.51 · 10,005 in stock | View |
| PT0402FR-7T0R1L#C851632YAGEO · 0402 | YAGEO | 0402 | 2,800 | ₹7.71 · 2,800 in stock | View | |
 | ERJ-2BWFR100X#C2088598PANASONIC · 0402 | PANASONIC | 0402 | 8,210 | ₹10.30 · 8,210 in stock | View |
 | CSR0402FKR100#C346796SEI(Stackpole Electronics Inc.) · 0402 | SEI(Stackpole Electronics Inc.) | 0402 | On request | Price on request | Quote |
| RU1005FR100CS#C4273059Samsung Electro-Mechanics · 0402 | Samsung Electro-Mechanics | 0402 | On request | Price on request | Quote | |
