YAGEODatasheet (PDF)

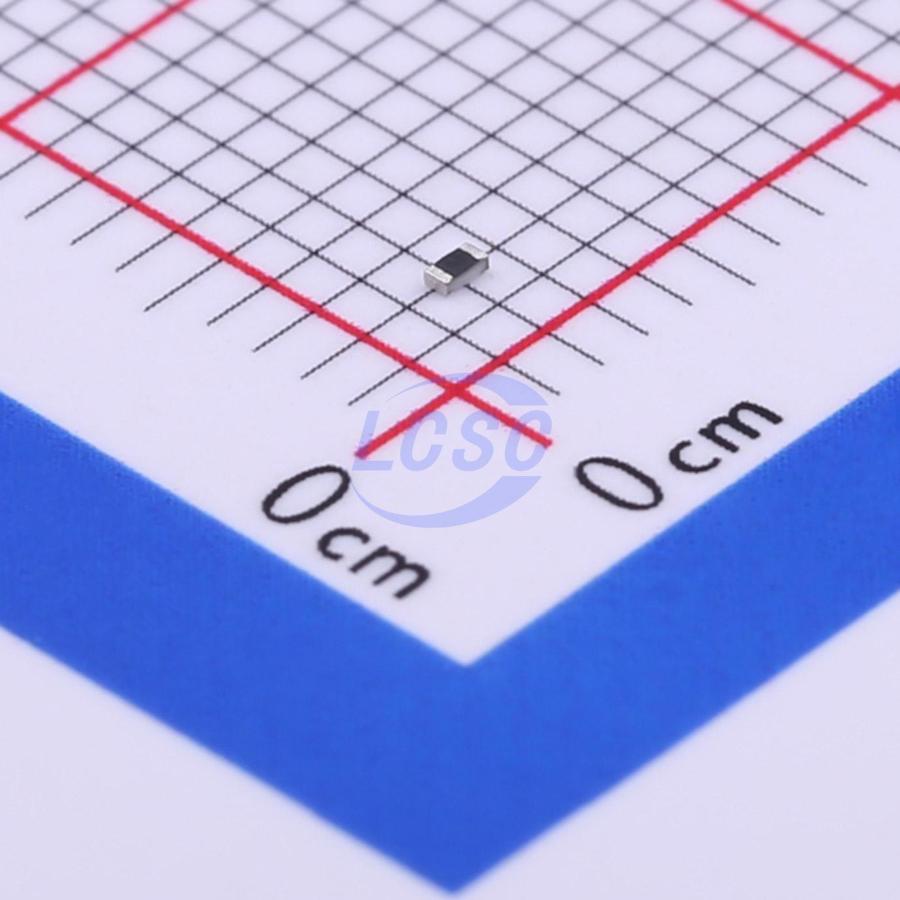

PT0402FR-7W0R22L
125mW 220mΩ Thick Film Resistor ±1% ±200ppm/℃ 0402 Chip Resistor - Surface Mount RoHS
0402ROHS3 CompliantActive
RES 0.22Ω ±1% 125mW 0402
- Manufacturer
- YAGEO
- Manufacturer part #
- PT0402FR-7W0R22L
- Store part #
- C724005
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C724005
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹3.02 | ₹151.00 |
| 500+ | ₹2.62 | ₹1,310.00 |
| 1,500+ | ₹2.39 | ₹3,585.00 |
| 10,000+ | ₹2.22 | ₹22,200.00 |
| 20,000+ | ₹2.10 | ₹42,000.00 |
| 50,000+ | ₹2.04 | ₹1,02,000.00 |
50 × ₹3.02
₹151.00
excl. GST
₹178.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PT0402FR-7W0R22L
₹151.00 for 50 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 220mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±200ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.009 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ERJ-2BQFR22X#C2073450PANASONIC · 0402 | PANASONIC | 0402 | 290 | ₹19.01 · 290 in stock | View |
| CSR0402FKR220#C2510704SEI(Stackpole Electronics Inc.) · 0402 | SEI(Stackpole Electronics Inc.) | 0402 | On request | Price on request | Quote | |
| PT0402FR-7T0R22L#C2142999YAGEO · 0402 | YAGEO | 0402 | On request | Price on request | Quote | |
| RCWE0402R220FKEA#C4349125VISHAY · 0402 | VISHAY | 0402 | On request | Price on request | Quote | |
| UCR01MVPFLR220#C2090313ROHM · 0402 | ROHM | 0402 | On request | Price on request | Quote | |
