YAGEODatasheet (PDF)

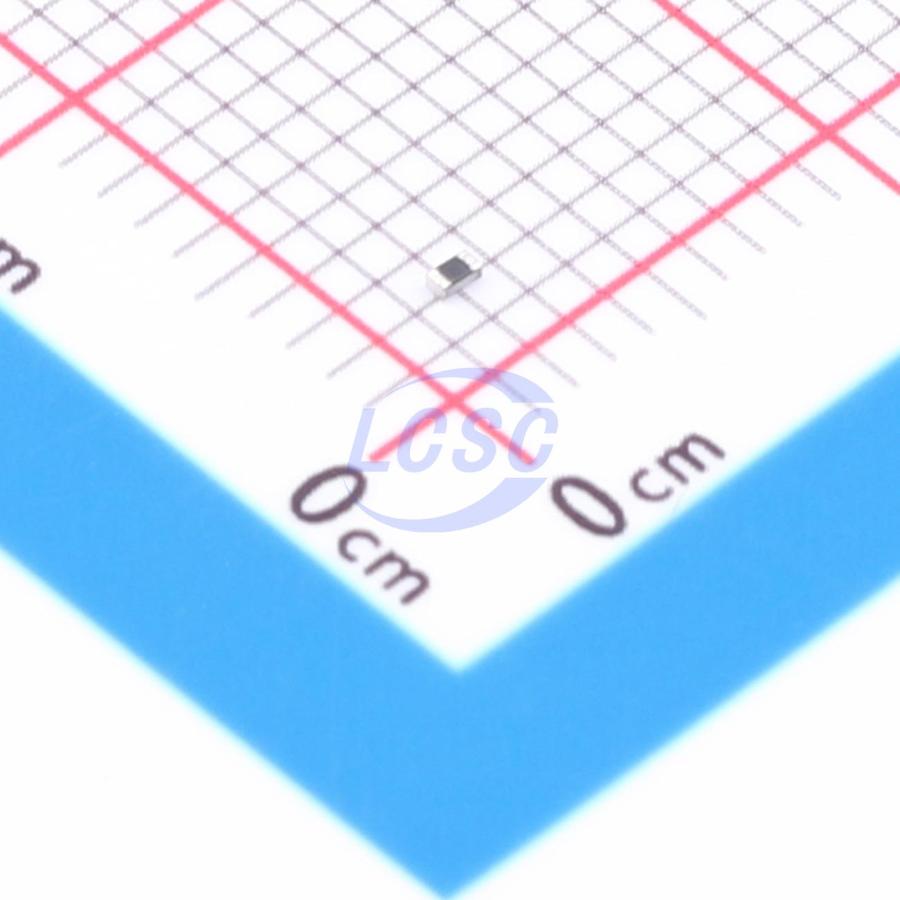

PT0402FR-7W0R25L
250mΩ 125mW Thick Film Resistor ±1% ±200ppm/℃ 0402 Chip Resistor - Surface Mount RoHS
0402ROHS3 CompliantActive
RES 0.25Ω ±1% 0.125W 0402
- Manufacturer
- YAGEO
- Manufacturer part #
- PT0402FR-7W0R25L
- Store part #
- C6737706
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,500 in stock
#C6737706
Stock & price checked 18 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.56 | ₹78.00 |
| 500+ | ₹1.23 | ₹615.00 |
| 1,500+ | ₹1.06 | ₹1,590.00 |
| 10,000+ | ₹0.9526 | ₹9,526.00 |
| 20,000+ | ₹0.860 | ₹17,200.00 |
| 50,000+ | ₹0.807 | ₹40,350.00 |
50 × ₹1.56
₹78.00
excl. GST
₹92.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PT0402FR-7W0R25L
₹78.00 for 50 + GST
Specifications
- Resistance
- 250mΩ
- Power(Watts)
- 125mW
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±200ppm/℃
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.01 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LCR0402-R250FT#C4251213Venkel · 0402 | Venkel | 0402 | On request | ₹6.59 · 0 in stock | View | |
| CSRT0402FTR250#C6158202SEI(Stackpole Electronics Inc.) · 0402 | SEI(Stackpole Electronics Inc.) | 0402 | On request | ₹36.08 · 0 in stock | View | |
