YAGEODatasheet (PDF)

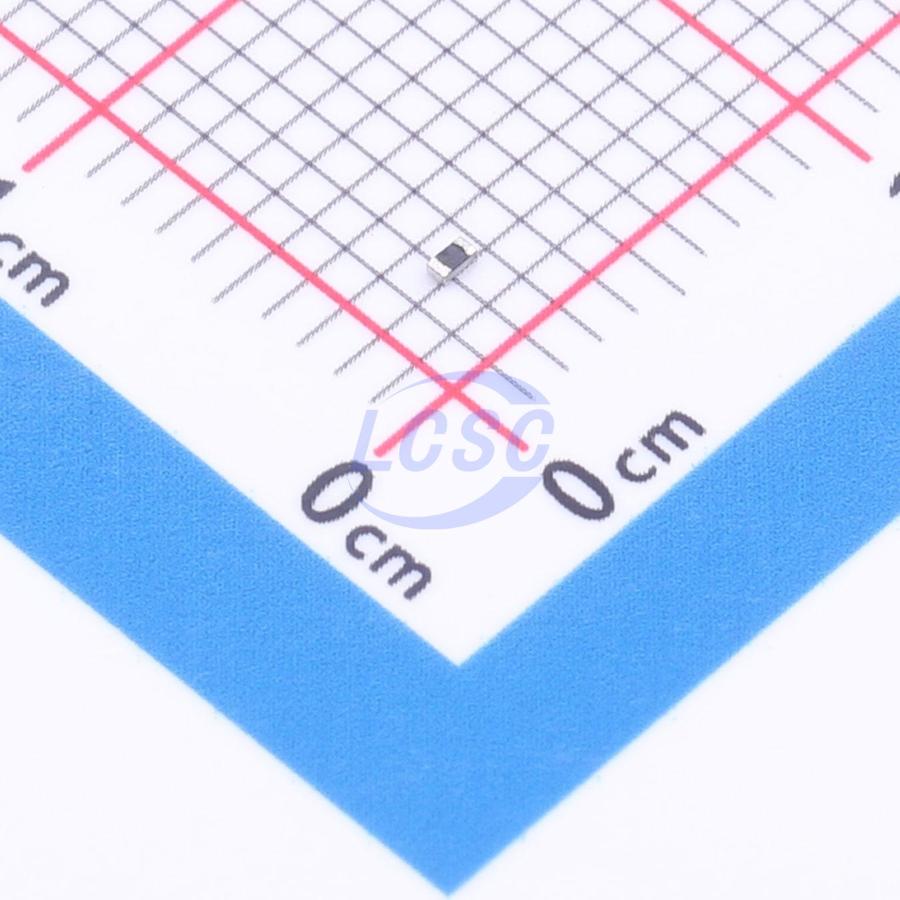

PT0402FR-7W0R2L
125mW 200mΩ Thick Film Resistor ±200ppm/℃ ±1% 0402 Chip Resistor - Surface Mount RoHS
0402ROHS3 CompliantActive
RES 0.2Ω ±1% 0.125W 0402
- Manufacturer
- YAGEO
- Manufacturer part #
- PT0402FR-7W0R2L
- Store part #
- C4223664
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C4223664
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.67 | ₹83.50 |
| 500+ | ₹1.32 | ₹660.00 |
| 1,500+ | ₹1.14 | ₹1,710.00 |
| 10,000+ | ₹1.02 | ₹10,200.00 |
| 20,000+ | ₹0.9261 | ₹18,522.00 |
| 50,000+ | ₹0.8732 | ₹43,660.00 |
50 × ₹1.67
₹83.50
excl. GST
₹98.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PT0402FR-7W0R2L
₹83.50 for 50 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 200mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±200ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.009 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RCWE0402R200FKEA#C2073507VISHAY · 0402 | VISHAY | 0402 | 3,745 | ₹14.62 · 3,745 in stock | View |
 | UCR01MVPFLR200#C2090801ROHM · 0402 | ROHM | 0402 | 180 | ₹23.75 · 180 in stock | View |
| ERJ-2BSFR20X#C2074818PANASONIC · 0402 | PANASONIC | 0402 | On request | Price on request | Quote | |
| CSRT0402FTR200#C7233477SEI(Stackpole Electronics Inc.) · 0402 | SEI(Stackpole Electronics Inc.) | 0402 | On request | Price on request | Quote | |
