YAGEODatasheet (PDF)

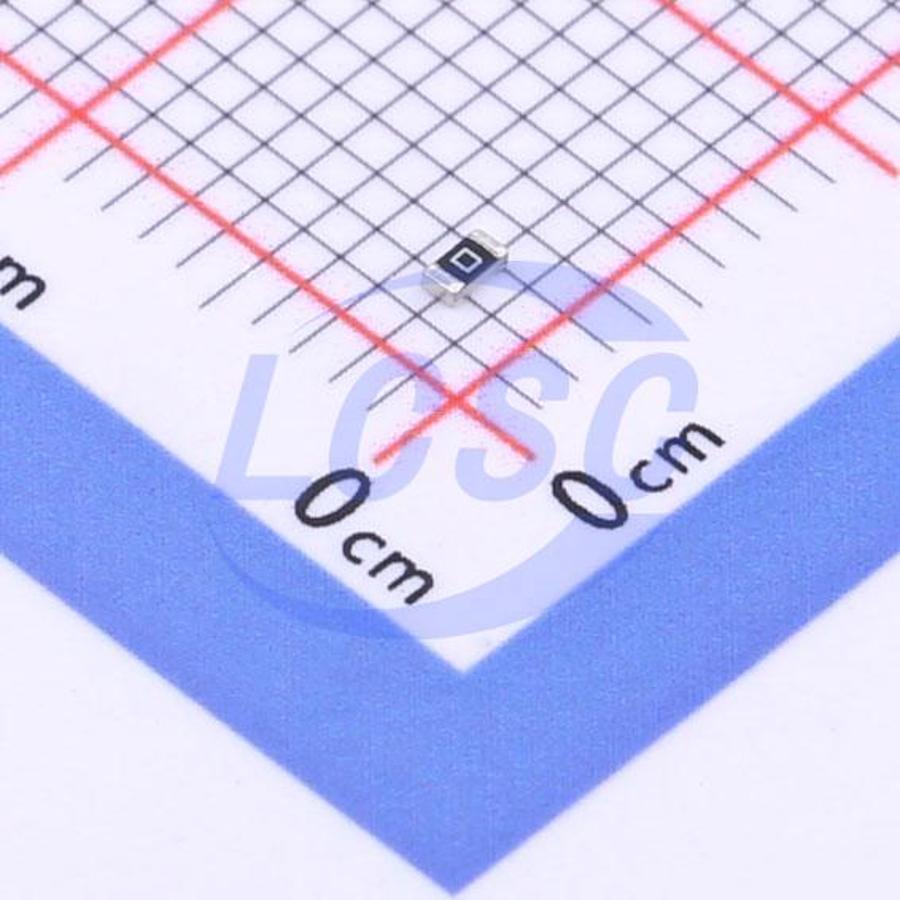

PT0603-R-070RL
0Ω 100mW Thick Film Resistor 0603 Chip Resistor - Surface Mount RoHS
0603ROHS3 CompliantActive
RES 0Ω 1/10W 0603
- Manufacturer
- YAGEO
- Manufacturer part #
- PT0603-R-070RL
- Store part #
- C2129186
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,150 in stock
#C2129186
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.74 | ₹87.00 |
| 500+ | ₹1.38 | ₹690.00 |
| 1,500+ | ₹1.17 | ₹1,755.00 |
| 5,000+ | ₹1.05 | ₹5,250.00 |
| 25,000+ | ₹0.935 | ₹23,375.00 |
| 50,000+ | ₹0.880 | ₹44,000.00 |
50 × ₹1.74
₹87.00
excl. GST
₹102.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT0603-R-070RL
₹87.00 for 50 + GST
Specifications
- Resistance
- 0Ω
- Power(Watts)
- 100mW
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.023 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
