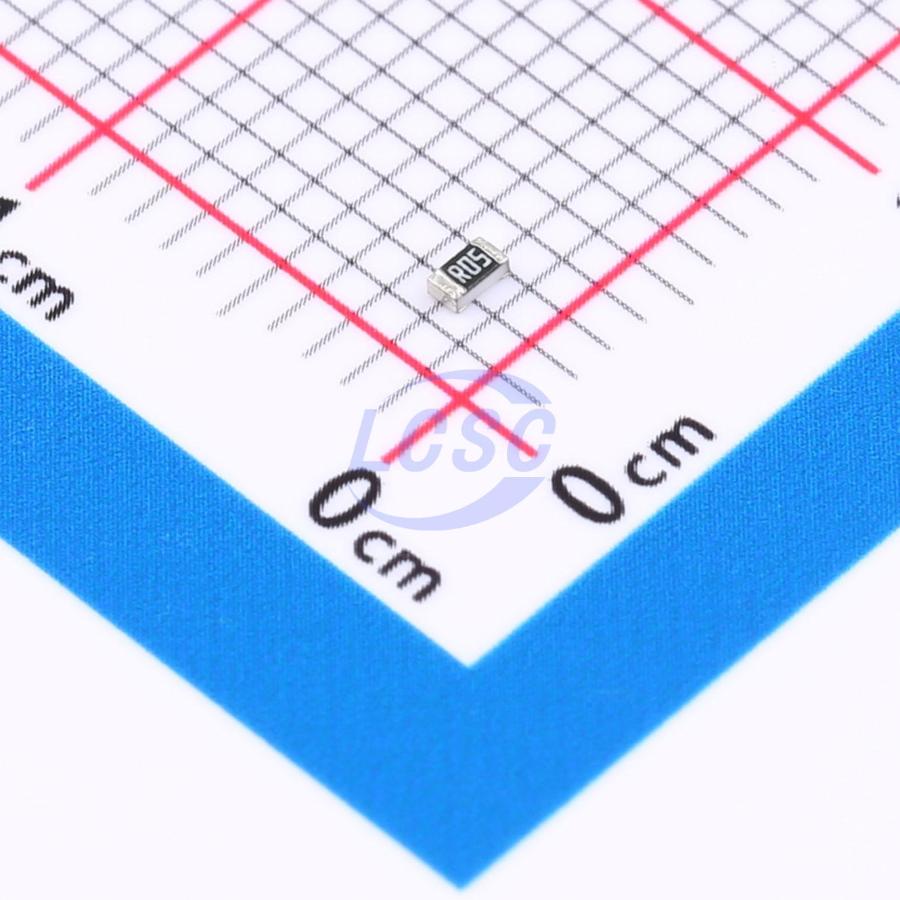

YAGEO

PT0603FR-7W0R05L

200mW 50mΩ Thick Film Resistor ±1% 0ppm/℃~+400ppm/℃ 0603 Chip Resistor - Surface Mount RoHS

0603ROHS3 CompliantActive

RES 0.05Ω ±1% 0.2W 0603

Manufacturer: YAGEO
Manufacturer part #: PT0603FR-7W0R05L
Store part #: C784595
Package / case: 0603
Category: Chip Resistor - Surface Mount
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

Out of stock

#C784595

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
20+	₹6.54	₹130.80
200+	₹5.42	₹1,084.00
600+	₹4.82	₹2,892.00
5,000+	₹4.38	₹21,900.00
10,000+	₹4.06	₹40,600.00
20,000+	₹3.88	₹77,600.00

Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Power(Watts): 200mW
Resistance: 50mΩ
Operating Temperature: -55℃~+155℃
Type: Thick Film Resistor
Tolerance: ±1%
Temperature Coefficient: 0ppm/℃~+400ppm/℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.023 g

Overview

This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.

Applications

Converters
Printer equipment
Server boards
Telecommunications
Consumer electronics
Automotive electronics

Key features

AEC-Q200 qualified
Halogen-free epoxy
RoHS compliant
Environmentally friendly
High component and device reliability
Non-prohibited materials in product/production
Low resistance for current sensing
Moisture Sensitivity Level: MSL I

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
CS03W5F500MT5E#C473945UNI-ROYAL · 0603	UNI-ROYAL	0603	1,200	₹5.13 · 1,200 in stock	View
ERJL03KF50MV#C713440PANASONIC · 0603	PANASONIC	0603	4,065	₹15.62 · 4,065 in stock	View
MFL0603R0500FA#C6666263EATON · 0603	EATON	0603	25	₹10.91 · 25 in stock	View
ERJ-3BWFR050V#C2074926PANASONIC · 0603	PANASONIC	0603	On request	Price on request	Quote
UR73D1JTTD50L0F#C2482353KOA · 0603	KOA	0603	On request	Price on request	Quote
