YAGEODatasheet (PDF)

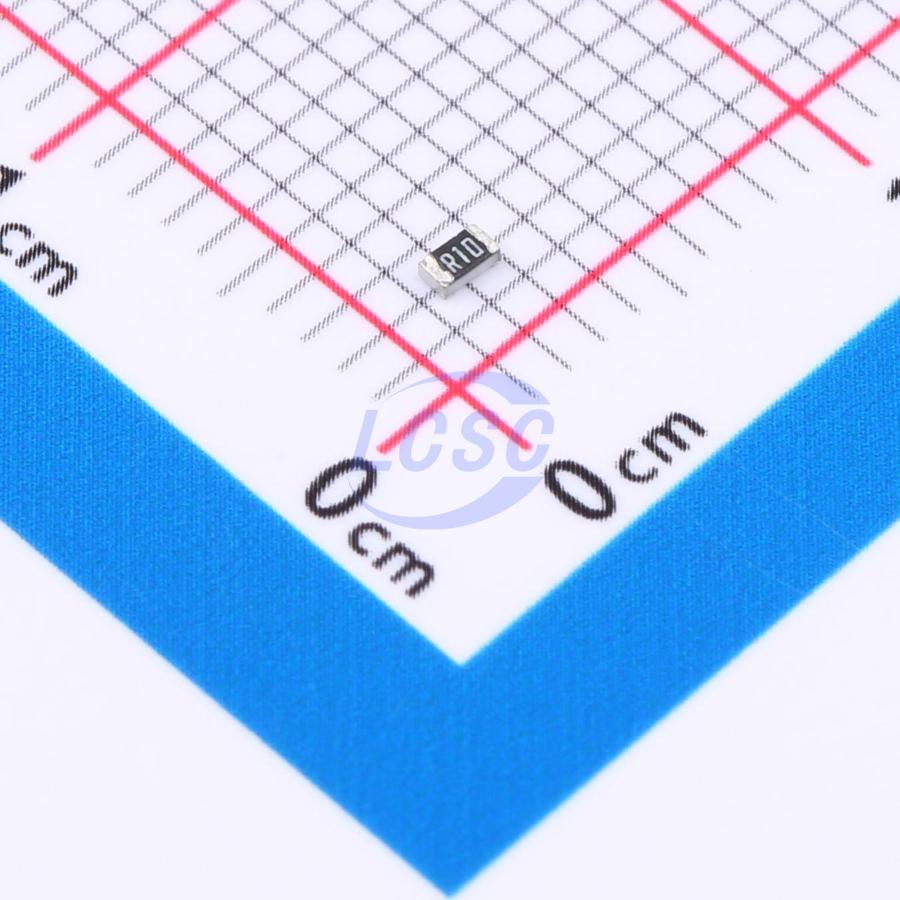

PT0603FR-7W0R1L
200mW 100mΩ Thick Film Resistor ±1% ±200ppm/℃ 0603 Chip Resistor - Surface Mount RoHS
0603ROHS3 CompliantActive
RES 0.1Ω ±1% 200mW 0603
- Manufacturer
- YAGEO
- Manufacturer part #
- PT0603FR-7W0R1L
- Store part #
- C858641
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,800 in stock
#C858641
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.71 | ₹94.20 |
| 200+ | ₹3.80 | ₹760.00 |
| 600+ | ₹3.28 | ₹1,968.00 |
| 5,000+ | ₹2.98 | ₹14,900.00 |
| 10,000+ | ₹2.71 | ₹27,100.00 |
| 20,000+ | ₹2.58 | ₹51,600.00 |
20 × ₹4.71
₹94.20
excl. GST
₹111.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT0603FR-7W0R1L
₹94.20 for 20 + GST
Specifications
- Power(Watts)
- 200mW
- Resistance
- 100mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±200ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.023 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RCWE0603R100FNEA#C2075411VISHAY · 0603 | VISHAY | 0603 | 3 | ₹100.23 · 3 in stock | View |
 | ERJ-3BWFR100V#C2074922PANASONIC · 0603 | PANASONIC | 0603 | 13,830 | ₹16.86 · 13,830 in stock | View |
 | CS03W5F100LT5E#C2771747UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 14,350 | ₹2.83 · 14,350 in stock | View |
 | ERJ-3BSFR10V#C2078952PANASONIC · 0603 | PANASONIC | 0603 | 60 | ₹17.81 · 60 in stock | View |
 | UCR03EVPFLR100#C880952ROHM · 0603 | ROHM | 0603 | 83,530 | ₹8.73 · 83,530 in stock | View |
