YAGEODatasheet (PDF)

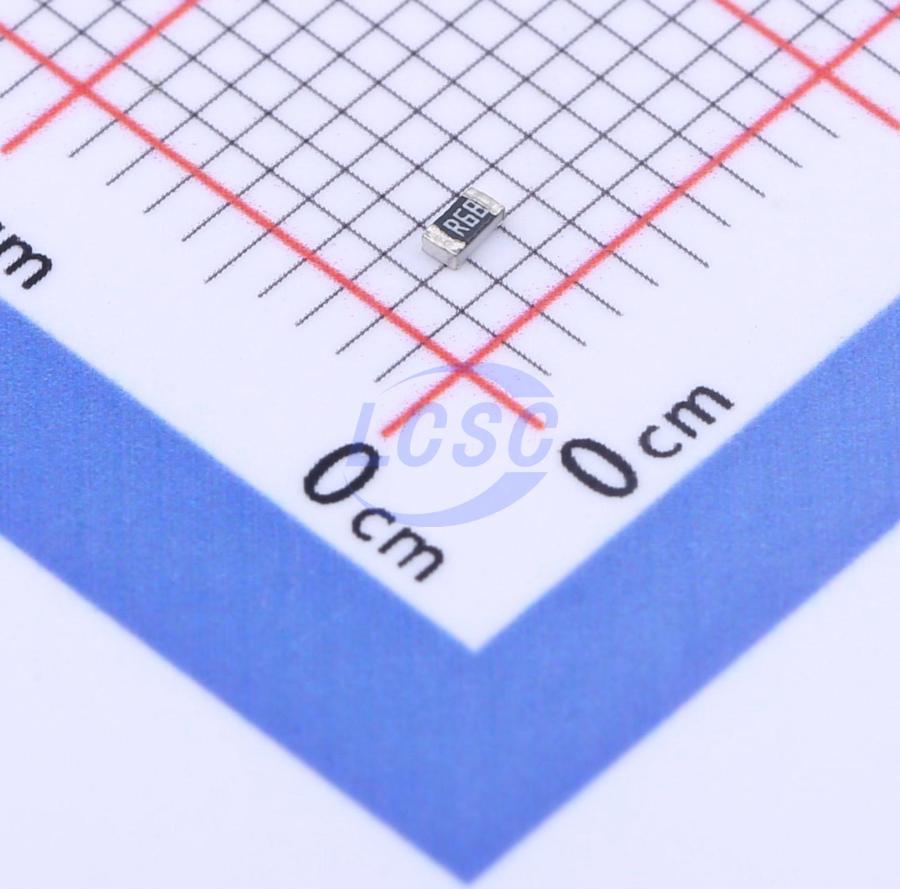

PT0603FR-7W0R68L
680mΩ 200mW Thick Film Resistor ±200ppm/℃ ±1% 0603 Chip Resistor - Surface Mount RoHS
0603ROHS3 CompliantActive
RES 0.68Ω ±1% 1/5W 0603
- Manufacturer
- YAGEO
- Manufacturer part #
- PT0603FR-7W0R68L
- Store part #
- C858656
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
140 in stock
#C858656
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.34 | ₹86.80 |
| 200+ | ₹3.41 | ₹682.00 |
| 600+ | ₹2.91 | ₹1,746.00 |
| 5,000+ | ₹2.59 | ₹12,950.00 |
| 10,000+ | ₹2.33 | ₹23,300.00 |
| 20,000+ | ₹2.18 | ₹43,600.00 |
20 × ₹4.34
₹86.80
excl. GST
₹102.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT0603FR-7W0R68L
₹86.80 for 20 + GST
Specifications
- Resistance
- 680mΩ
- Power(Watts)
- 200mW
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±200ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.023 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SR731JRTTDR680F#C2613013KOA · 0603 | KOA | 0603 | On request | Price on request | Quote | |
 | CS03W5F680LT5E#C2771795UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | On request | Price on request | Quote |
 | SR731JTTDR680F#C186568KOA · 0603 | KOA | 0603 | On request | Price on request | Quote |
| RCWE0603R680FKEA#C2079528VISHAY · 0603 | VISHAY | 0603 | On request | Price on request | Quote | |
| UCR03EVPFLR680#C6902743ROHM · 0603 | ROHM | 0603 | On request | Price on request | Quote | |
