YAGEODatasheet (PDF)

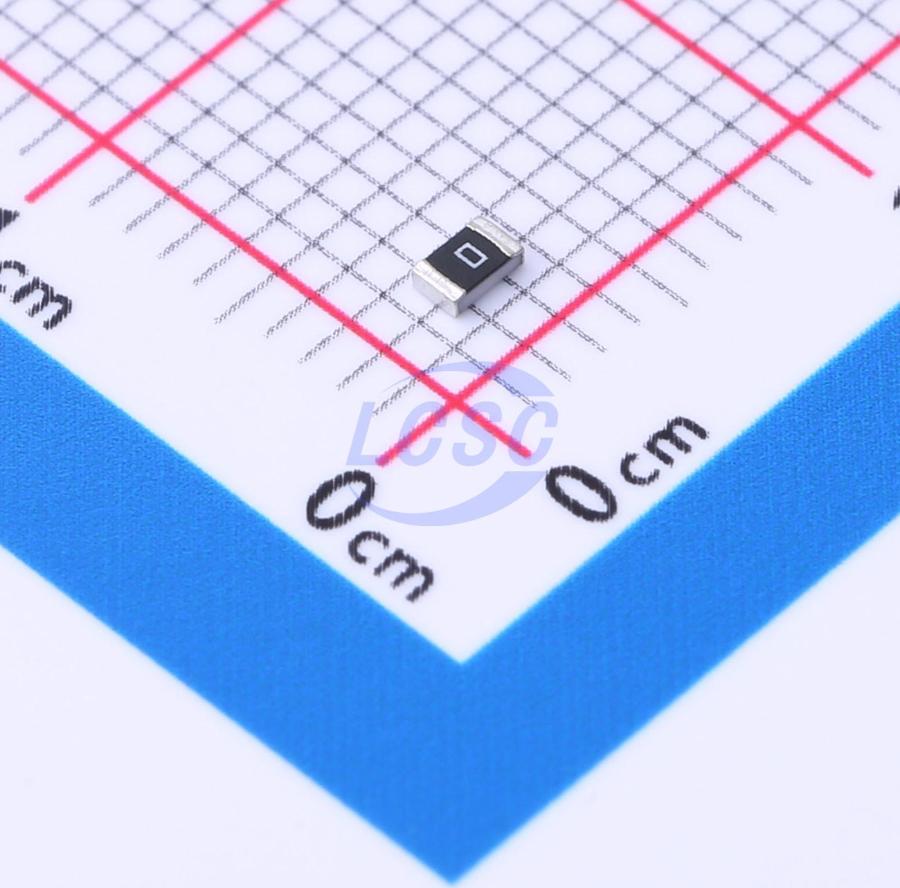

PT0805-R-070RL
0Ω Thick Film Resistor 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 0Ω 0805
- Manufacturer
- YAGEO
- Manufacturer part #
- PT0805-R-070RL
- Store part #
- C1882631
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,140 in stock
#C1882631
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.07 | ₹101.40 |
| 200+ | ₹4.22 | ₹844.00 |
| 600+ | ₹3.76 | ₹2,256.00 |
| 5,000+ | ₹3.45 | ₹17,250.00 |
| 10,000+ | ₹3.20 | ₹32,000.00 |
| 20,000+ | ₹3.07 | ₹61,400.00 |
20 × ₹5.07
₹101.40
excl. GST
₹119.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT0805-R-070RL
₹101.40 for 20 + GST
Specifications
- Resistance
- 0Ω
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
