YAGEODatasheet (PDF)

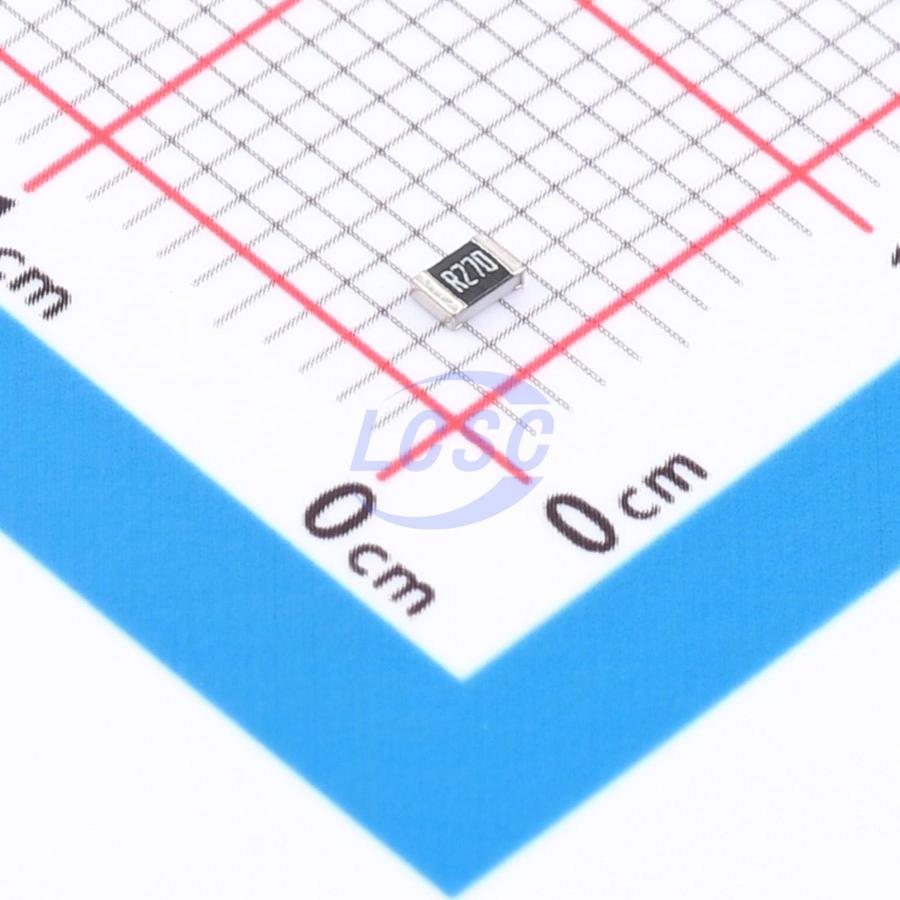

PT0805FR-7W0R27L
270mΩ 250mW Thick Film Resistor ±100ppm/℃ ±1% 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 0.27Ω ±1% 1/4W 0805
- Manufacturer
- YAGEO
- Manufacturer part #
- PT0805FR-7W0R27L
- Store part #
- C2135707
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,020 in stock
#C2135707
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.29 | ₹65.80 |
| 200+ | ₹2.59 | ₹518.00 |
| 600+ | ₹2.21 | ₹1,326.00 |
| 5,000+ | ₹1.97 | ₹9,850.00 |
| 10,000+ | ₹1.77 | ₹17,700.00 |
| 20,000+ | ₹1.67 | ₹33,400.00 |
20 × ₹3.29
₹65.80
excl. GST
₹77.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT0805FR-7W0R27L
₹65.80 for 20 + GST
Specifications
- Resistance
- 270mΩ
- Power(Watts)
- 250mW
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WW08WR270FTL#C171374Walsin · 0805 | Walsin | 0805 | 3,800 | ₹0.8996 · 3,800 in stock | View |
 | RL0805FR-7W0R27L#C859805YAGEO · 0805 | YAGEO | 0805 | 9,740 | ₹3.77 · 9,740 in stock | View |
 | ERJ-6BQFR27V#C2092764PANASONIC · 0805 | PANASONIC | 0805 | 40 | ₹16.35 · 40 in stock | View |
| RCWE0805R270FKEA#C2083143VISHAY · 0805 | VISHAY | 0805 | On request | Price on request | Quote | |
| ERJ-6DQFR27V#C2087706PANASONIC · 0805 | PANASONIC | 0805 | On request | Price on request | Quote | |
