YAGEODatasheet (PDF)

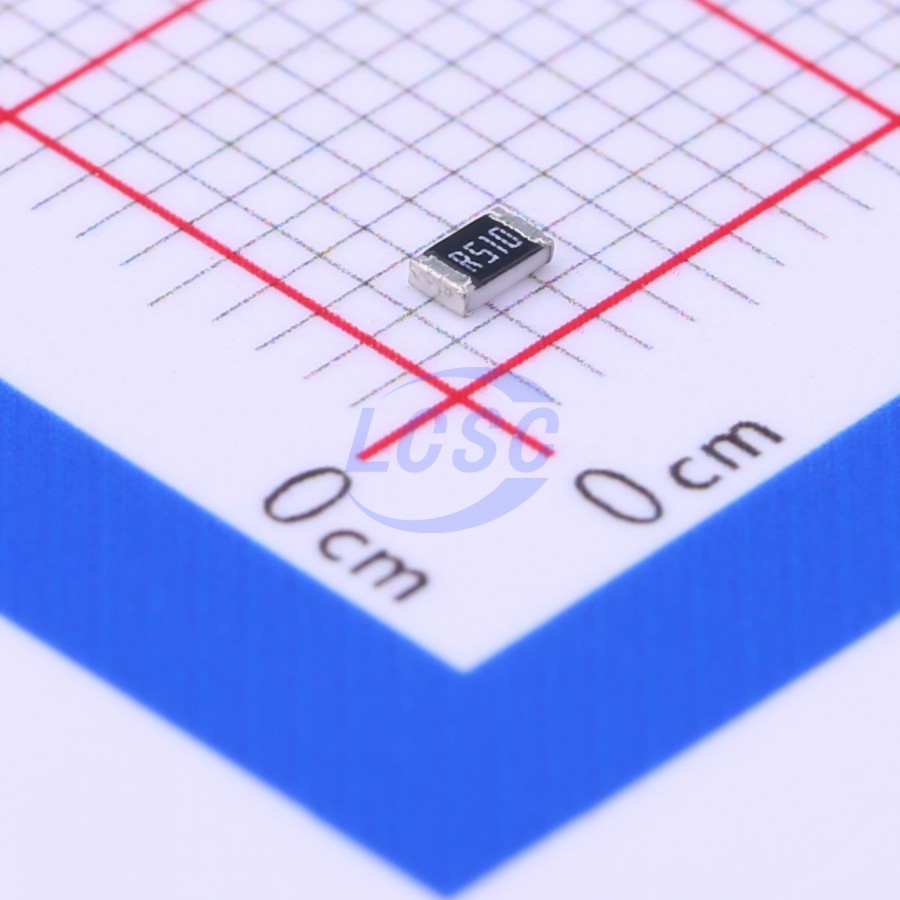

PT0805FR-7W0R51L
250mW 510mΩ Thick Film Resistor ±100ppm/℃ ±1% 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 0.51Ω ±1% 250mW 0805
- Manufacturer
- YAGEO
- Manufacturer part #
- PT0805FR-7W0R51L
- Store part #
- C309532
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C309532
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.90 | ₹78.00 |
| 200+ | ₹3.07 | ₹614.00 |
| 600+ | ₹2.61 | ₹1,566.00 |
| 5,000+ | ₹2.33 | ₹11,650.00 |
| 10,000+ | ₹2.09 | ₹20,900.00 |
| 20,000+ | ₹1.96 | ₹39,200.00 |
20 × ₹3.90
₹78.00
excl. GST
₹92.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT0805FR-7W0R51L
₹78.00 for 20 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 510mΩ
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ERJU6QFR51V#C491234PANASONIC · 0805 | PANASONIC | 0805 | 3,420 | ₹16.67 · 3,420 in stock | View |
 | RL0805FR-7W0R51L#C859812YAGEO · 0805 | YAGEO | 0805 | 2,740 | ₹3.04 · 2,740 in stock | View |
 | CFHP05FN0R51P#C49254085CHANGLONG · 0805 | CHANGLONG | 0805 | 3,300 | ₹3.21 · 3,300 in stock | View |
 | WW08WR510FTL#C171378Walsin · 0805 | Walsin | 0805 | 4,900 | ₹0.860 · 4,900 in stock | View |
| RCWE0805R510FKEA#C3928525VISHAY · 0805 | VISHAY | 0805 | On request | Price on request | Quote | |
