YAGEODatasheet (PDF)

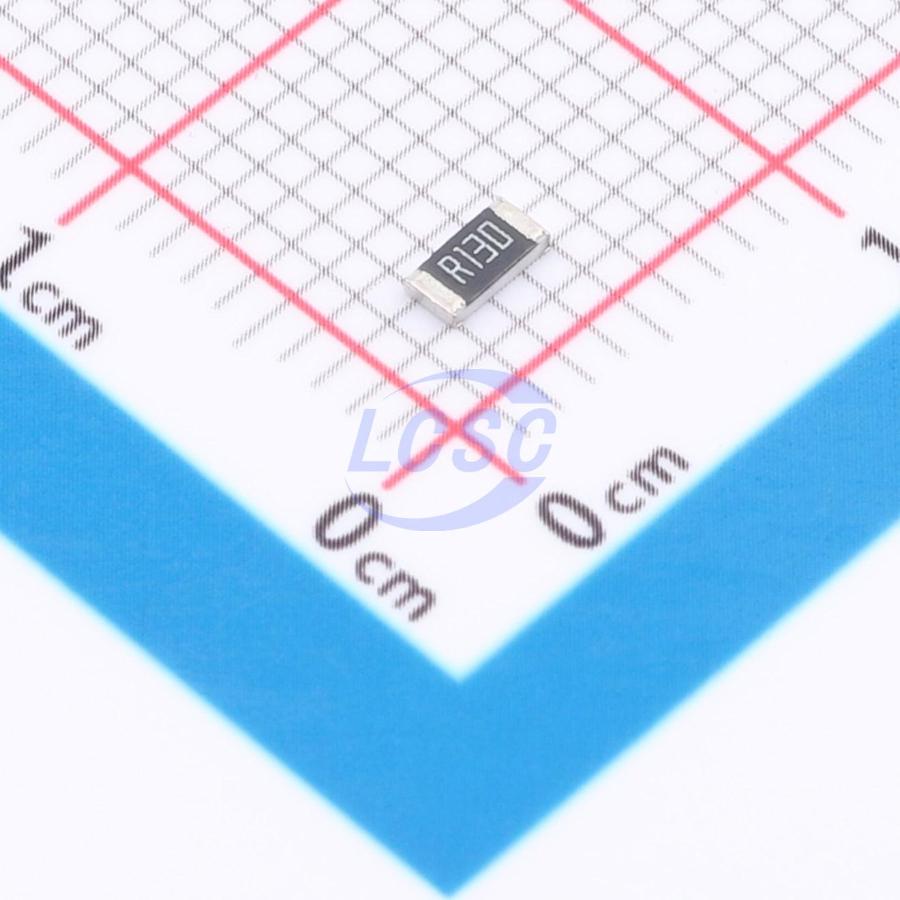

PT1206FR-070R13L
130mΩ 250mW Thick Film Resistor ±75ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 0.13Ω ±1% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- PT1206FR-070R13L
- Store part #
- C858727
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,850 in stock
#C858727
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.14 | ₹71.40 |
| 100+ | ₹5.89 | ₹589.00 |
| 300+ | ₹5.27 | ₹1,581.00 |
| 1,000+ | ₹4.80 | ₹4,800.00 |
| 5,000+ | ₹4.42 | ₹22,100.00 |
| 10,000+ | ₹4.23 | ₹42,300.00 |
10 × ₹7.14
₹71.40
excl. GST
₹84.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT1206FR-070R13L
₹71.40 for 10 + GST
Specifications
- Resistance
- 130mΩ
- Power(Watts)
- 250mW
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FRL1206FR130TS#C2907347FOJAN · 1206 | FOJAN | 1206 | 18,100 | ₹1.07 · 18,100 in stock | View |
 | 1206W4F130LT5E#C61472UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 1,900 | ₹0.7144 · 1,900 in stock | View |
 | CSR1206FTR130#C346779SEI(Stackpole Electronics Inc.) · 1206 | SEI(Stackpole Electronics Inc.) | 1206 | 1,745 | ₹13.48 · 1,745 in stock | View |
 | CRL1206-FW-R130ELF#C2081056BOURNS · 1206 | BOURNS | 1206 | 30 | ₹9.22 · 30 in stock | View |
| PT1206FR-7W0R13L#C858777YAGEO · 1206 | YAGEO | 1206 | On request | Price on request | Quote | |
