YAGEODatasheet (PDF)

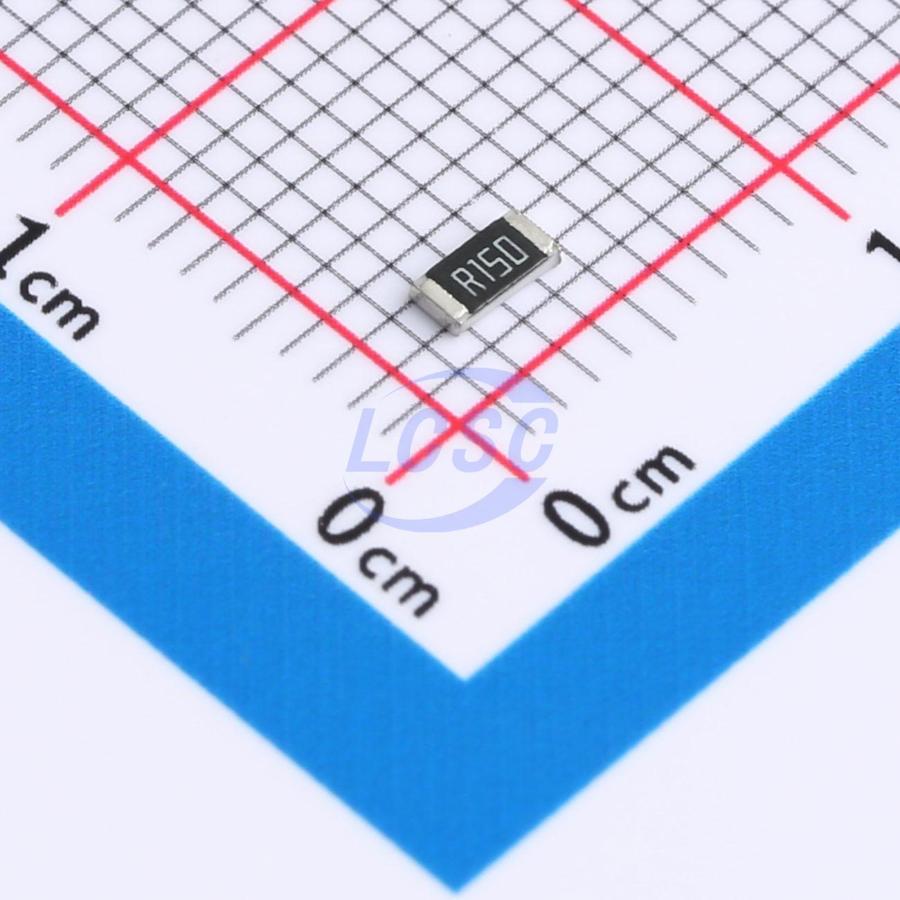

PT1206FR-070R15L
250mW 150mΩ Thick Film Resistor ±75ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 0.15Ω ±1% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- PT1206FR-070R15L
- Store part #
- C858731
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
420 in stock
#C858731
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.96 | ₹79.20 |
| 200+ | ₹3.14 | ₹628.00 |
| 600+ | ₹2.69 | ₹1,614.00 |
| 5,000+ | ₹2.41 | ₹12,050.00 |
| 10,000+ | ₹2.17 | ₹21,700.00 |
| 20,000+ | ₹2.05 | ₹41,000.00 |
20 × ₹3.96
₹79.20
excl. GST
₹93.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT1206FR-070R15L
₹79.20 for 20 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 150mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PT1206FR-7W0R15L#C858778YAGEO · 1206 | YAGEO | 1206 | 10 | ₹6.75 · 10 in stock | View |
 | FRL1206FR150TS#C2907348FOJAN · 1206 | FOJAN | 1206 | 3,87,900 | ₹1.31 · 3,87,900 in stock | View |
 | RL1206FR-070R15L#C327070YAGEO · 1206 | YAGEO | 1206 | 4,980 | ₹4.72 · 4,980 in stock | View |
 | 1206W4F150LT5E#C37936UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 35,050 | ₹1.92 · 35,050 in stock | View |
 | RCWE1206R150FKEA#C2075914VISHAY · 1206 | VISHAY | 1206 | 20 | ₹66.79 · 20 in stock | View |
