YAGEODatasheet (PDF)

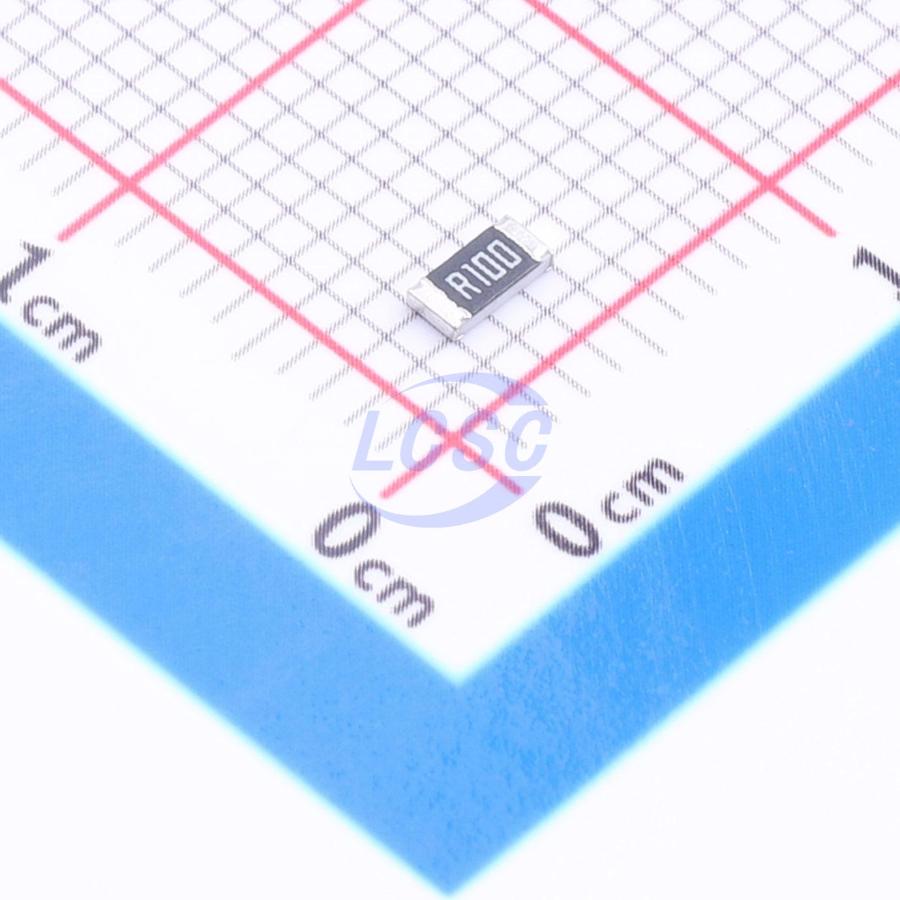

PT1206FR-070R1L
250mW 100mΩ Thick Film Resistor ±100ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 0.1Ω ±1% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- PT1206FR-070R1L
- Store part #
- C858738
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,610 in stock
#C858738
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.51 | ₹95.10 |
| 100+ | ₹7.91 | ₹791.00 |
| 300+ | ₹7.10 | ₹2,130.00 |
| 1,000+ | ₹6.50 | ₹6,500.00 |
| 5,000+ | ₹6.02 | ₹30,100.00 |
| 10,000+ | ₹5.78 | ₹57,800.00 |
10 × ₹9.51
₹95.10
excl. GST
₹112.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT1206FR-070R1L
₹95.10 for 10 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 100mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RL73H2BR10FTD#C5163126TE Connectivity · 1206 | TE Connectivity | 1206 | 18 | ₹30.88 · 18 in stock | View |
 | RCWE1206R100FKEA#C844256VISHAY · 1206 | VISHAY | 1206 | 32 | ₹112.64 · 32 in stock | View |
| ERJ-L08KF10CV#C2075188PANASONIC · 1206 | PANASONIC | 1206 | 4,780 | ₹35.96 · 4,780 in stock | View | |
 | WW12WR100FTL#C164014Walsin · 1206 | Walsin | 1206 | 32,300 | ₹2.84 · 32,300 in stock | View |
 | CRM1206AFX-R100ELF#C2089366BOURNS · 1206 | BOURNS | 1206 | 1 | ₹37.34 · 1 in stock | View |
