YAGEODatasheet (PDF)

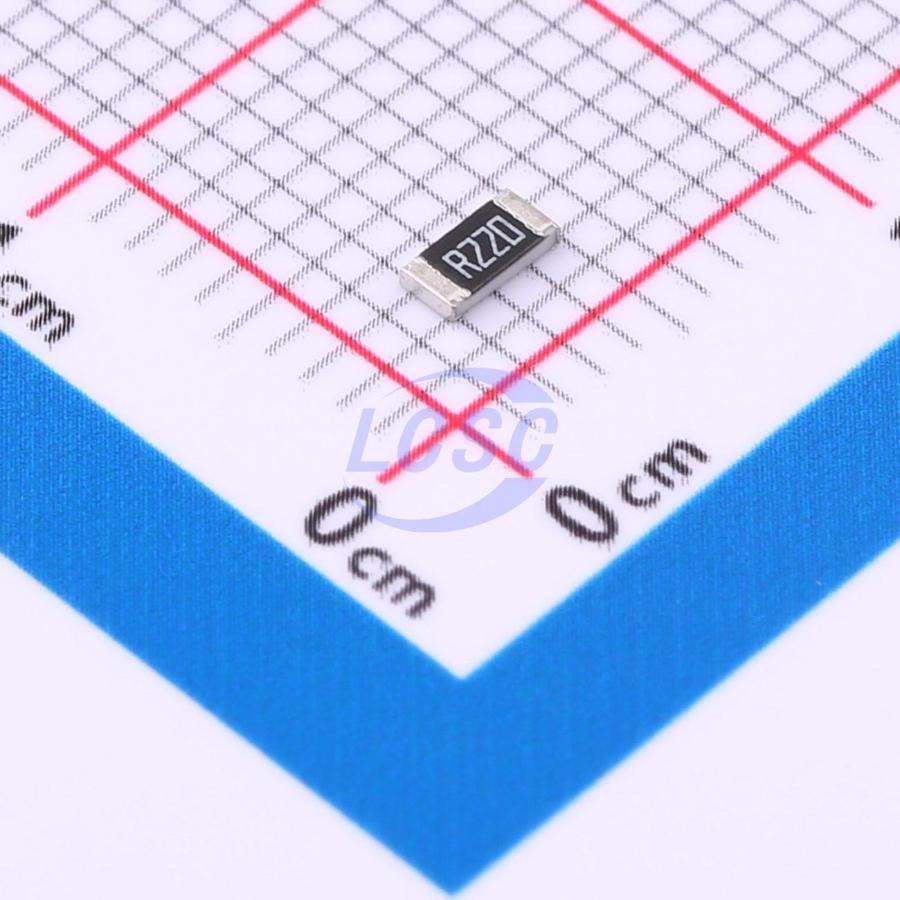

PT1206FR-070R22L
250mW 220mΩ Thick Film Resistor ±75ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 0.22Ω ±1% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- PT1206FR-070R22L
- Store part #
- C858740
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,670 in stock
#C858740
Stock & price checked 17 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.32 | ₹63.20 |
| 100+ | ₹5.07 | ₹507.00 |
| 300+ | ₹4.45 | ₹1,335.00 |
| 1,000+ | ₹3.97 | ₹3,970.00 |
| 5,000+ | ₹3.60 | ₹18,000.00 |
| 10,000+ | ₹3.40 | ₹34,000.00 |
10 × ₹6.32
₹63.20
excl. GST
₹74.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT1206FR-070R22L
₹63.20 for 10 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 220mΩ
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RL1206FR-070R22L#C155692YAGEO · 1206 | YAGEO | 1206 | 2,650 | ₹2.84 · 2,650 in stock | View |
 | CRH1206FR220P05Z#C175789EVER OHMS · 1206 | EVER OHMS | 1206 | 1,900 | ₹2.30 · 1,900 in stock | View |
 | 1206W4F220LT5E#C25336UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 33,250 | ₹1.12 · 33,250 in stock | View |
 | FRL1206FR220TS#C2907349FOJAN · 1206 | FOJAN | 1206 | 1,31,100 | ₹0.9526 · 1,31,100 in stock | View |
| ERJ-8RQFR22V#C4301427PANASONIC · 1206 | PANASONIC | 1206 | 5 | ₹13.72 · 5 in stock | View | |
