YAGEODatasheet (PDF)

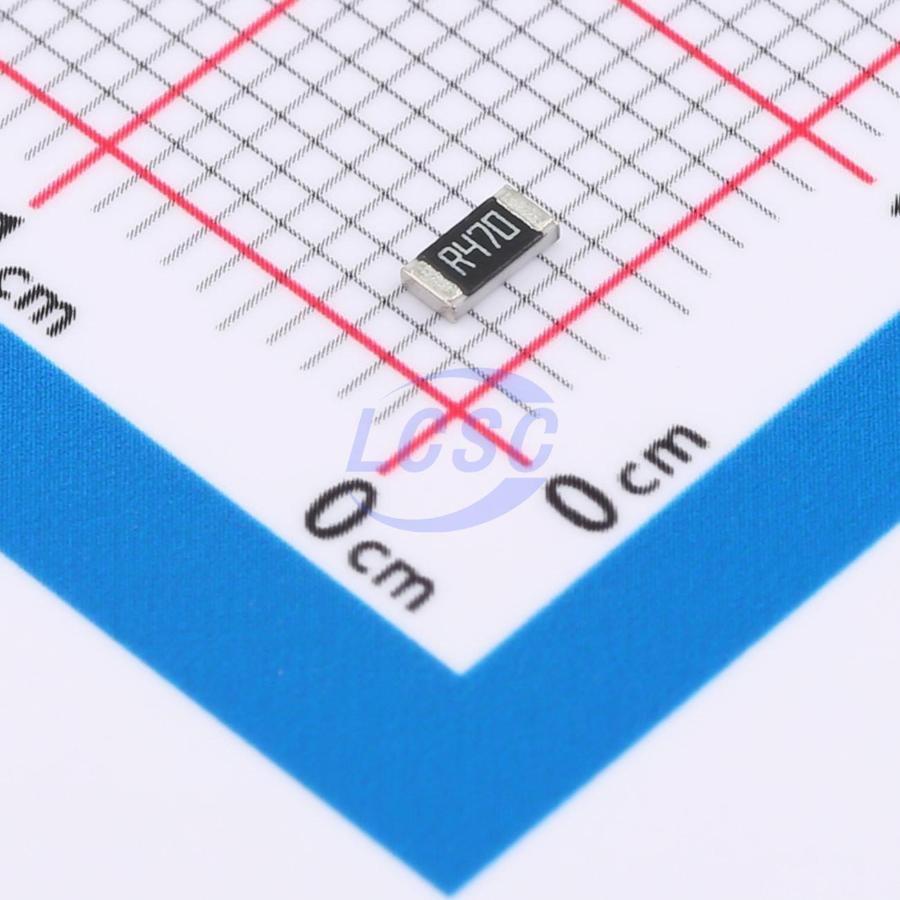

PT1206FR-070R47L
470mΩ 250mW Thick Film Resistor ±75ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 0.47Ω ±1% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- PT1206FR-070R47L
- Store part #
- C858760
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,100 in stock
#C858760
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.11 | ₹102.20 |
| 200+ | ₹4.05 | ₹810.00 |
| 600+ | ₹3.45 | ₹2,070.00 |
| 5,000+ | ₹3.10 | ₹15,500.00 |
| 10,000+ | ₹2.79 | ₹27,900.00 |
| 20,000+ | ₹2.62 | ₹52,400.00 |
20 × ₹5.11
₹102.20
excl. GST
₹120.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT1206FR-070R47L
₹102.20 for 20 + GST
Specifications
- Resistance
- 470mΩ
- Power(Watts)
- 250mW
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1206W4F470LT5E#C28320UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 10,300 | ₹2.01 · 10,300 in stock | View |
 | FRL1206FR470TS#C2907355FOJAN · 1206 | FOJAN | 1206 | 1,89,300 | ₹0.9923 · 1,89,300 in stock | View |
 | WW12WR470FTL#C168607Walsin · 1206 | Walsin | 1206 | 800 | ₹1.07 · 800 in stock | View |
 | RLT06R470FTP#C2843698RALEC · 1206 | RALEC | 1206 | 50 | ₹0.9658 · 50 in stock | View |
 | FPL1206FR470TS#C22375129FOJAN · 1206 | FOJAN | 1206 | 100 | ₹3.16 · 100 in stock | View |
