YAGEODatasheet (PDF)

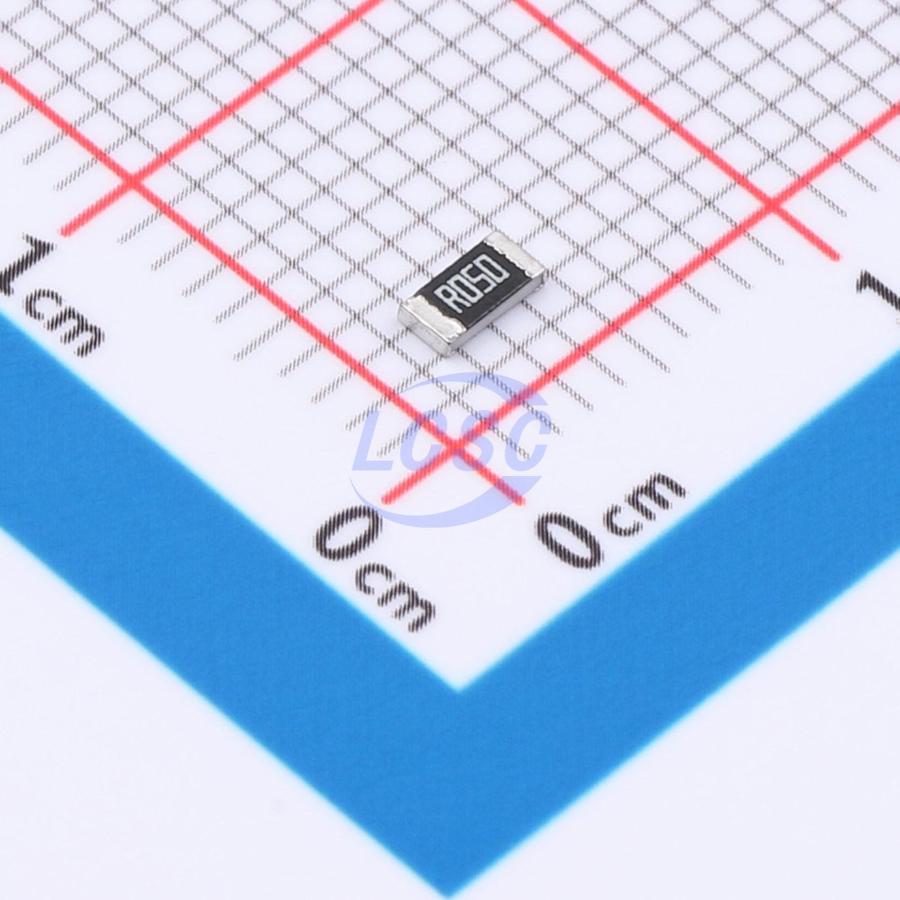

PT1206FR-7W0R05L
500mW 50mΩ Thick Film Resistor ±350ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS CompliantActive
RES 0.05Ω ±1% 500mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- PT1206FR-7W0R05L
- Store part #
- C723748
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
260 in stock
#C723748
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.93 | ₹59.65 |
| 50+ | ₹9.70 | ₹485.00 |
| 150+ | ₹8.57 | ₹1,285.50 |
| 500+ | ₹7.74 | ₹3,870.00 |
| 2,500+ | ₹7.06 | ₹17,650.00 |
| 5,000+ | ₹6.73 | ₹33,650.00 |
5 × ₹11.93
₹59.65
excl. GST
₹70.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT1206FR-7W0R05L
₹59.65 for 5 + GST
Specifications
- Power(Watts)
- 500mW
- Resistance
- 50mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±350ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| HP06W2F500MT5E#C2765761UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 1,750 | ₹10.00 · 1,750 in stock | View | |
 | CRM1206-FX-R050ELF#C2687400BOURNS · 1206 | BOURNS | 1206 | 11,775 | ₹23.32 · 11,775 in stock | View |
 | 1HP1206FR050002#C51901716SAE · 1206 | SAE | 1206 | 2,710 | ₹11.56 · 2,710 in stock | View |
 | ERJ-8BWFR050V#C2089106PANASONIC · 1206 | PANASONIC | 1206 | 2,995 | ₹22.94 · 2,995 in stock | View |
 | RL1206FR-7W0R05L#C859916YAGEO · 1206 | YAGEO | 1206 | 17,900 | ₹8.07 · 17,900 in stock | View |
