YAGEODatasheet (PDF)

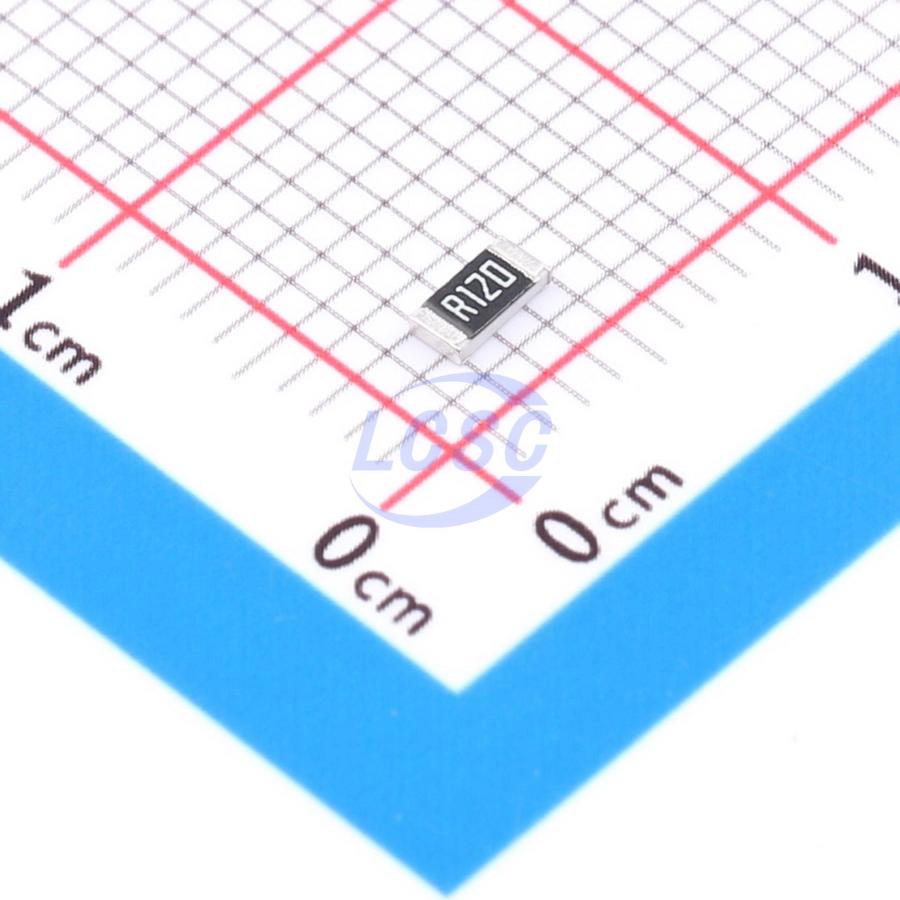

PT1206FR-7W0R12L
120mΩ 500mW Thick Film Resistor ±75ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 0.12Ω ±1% 500mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- PT1206FR-7W0R12L
- Store part #
- C858775
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,970 in stock
#C858775
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.89 | ₹78.90 |
| 100+ | ₹6.40 | ₹640.00 |
| 300+ | ₹5.66 | ₹1,698.00 |
| 1,000+ | ₹5.11 | ₹5,110.00 |
| 5,000+ | ₹4.66 | ₹23,300.00 |
| 10,000+ | ₹4.43 | ₹44,300.00 |
10 × ₹7.89
₹78.90
excl. GST
₹93.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT1206FR-7W0R12L
₹78.90 for 10 + GST
Specifications
- Resistance
- 120mΩ
- Power(Watts)
- 500mW
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HP06W2F120LT5E#C2759200UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 4,830 | ₹7.18 · 4,830 in stock | View |
| CRL1206-FW-R120ELF#C49675053BOURNS · 1206 | BOURNS | 1206 | 50 | ₹12.81 · 50 in stock | View | |
| RCWE1206R120FKEA#C2076051VISHAY · 1206 | VISHAY | 1206 | On request | Price on request | Quote | |
| ERJ-8BSFR12V#C2079508PANASONIC · 1206 | PANASONIC | 1206 | On request | Price on request | Quote | |
| RLP73K2BR12FTDF#C3924492TE Connectivity · 1206 | TE Connectivity | 1206 | On request | Price on request | Quote | |
