YAGEODatasheet (PDF)

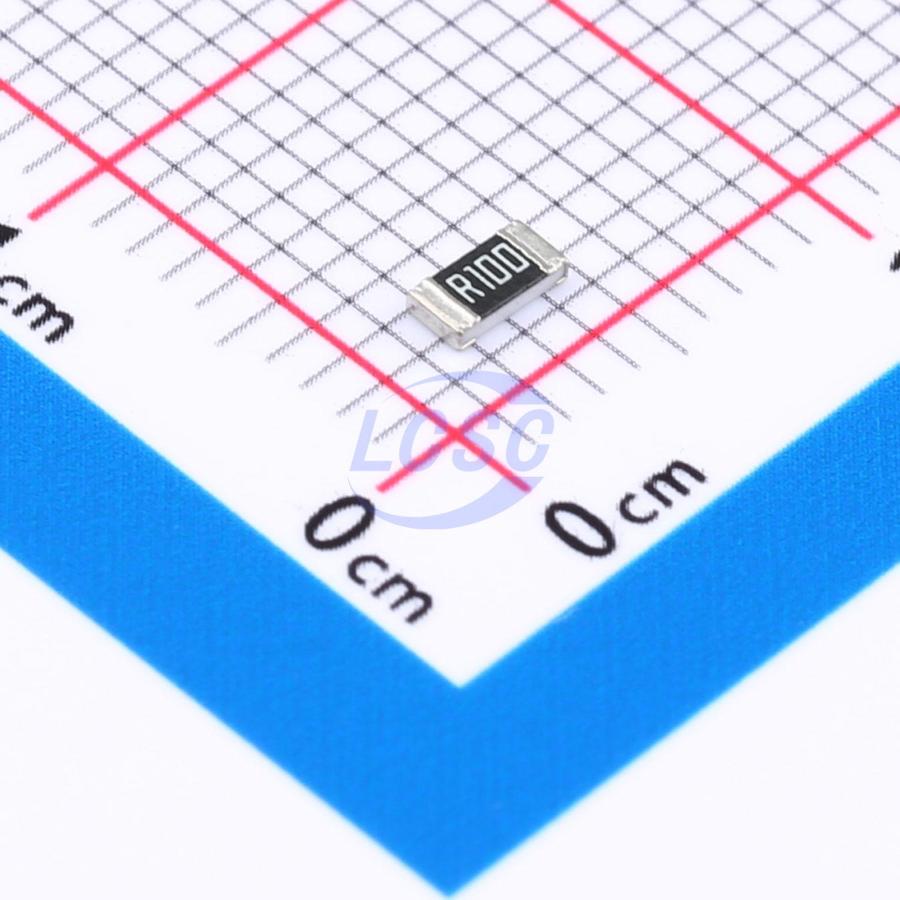

PT1206FR-7W0R1L
500mW 100mΩ Thick Film Resistor ±75ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 0.1Ω ±1% 0.5W 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- PT1206FR-7W0R1L
- Store part #
- C3033268
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,550 in stock
#C3033268
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.18 | ₹60.90 |
| 50+ | ₹10.00 | ₹500.00 |
| 150+ | ₹8.90 | ₹1,335.00 |
| 500+ | ₹8.08 | ₹4,040.00 |
| 2,500+ | ₹7.44 | ₹18,600.00 |
| 5,000+ | ₹6.88 | ₹34,400.00 |
5 × ₹12.18
₹60.90
excl. GST
₹71.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT1206FR-7W0R1L
₹60.90 for 5 + GST
Specifications
- Power(Watts)
- 500mW
- Resistance
- 100mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ERJ-8BSFR10V#C2079636PANASONIC · 1206 | PANASONIC | 1206 | 70 | ₹23.99 · 70 in stock | View |
 | CRM1206AFX-R100ELF#C2089366BOURNS · 1206 | BOURNS | 1206 | 1 | ₹37.34 · 1 in stock | View |
 | RTH06R100FTP#C2991271RALEC · 1206 | RALEC | 1206 | 3,400 | ₹1.96 · 3,400 in stock | View |
 | HP06W2F100LT5E#C414960UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 1,700 | ₹3.63 · 1,700 in stock | View |
| CRL1206-FW-R100ELF#C49230731BOURNS · 1206 | BOURNS | 1206 | 45 | ₹22.29 · 45 in stock | View | |
