YAGEODatasheet (PDF)

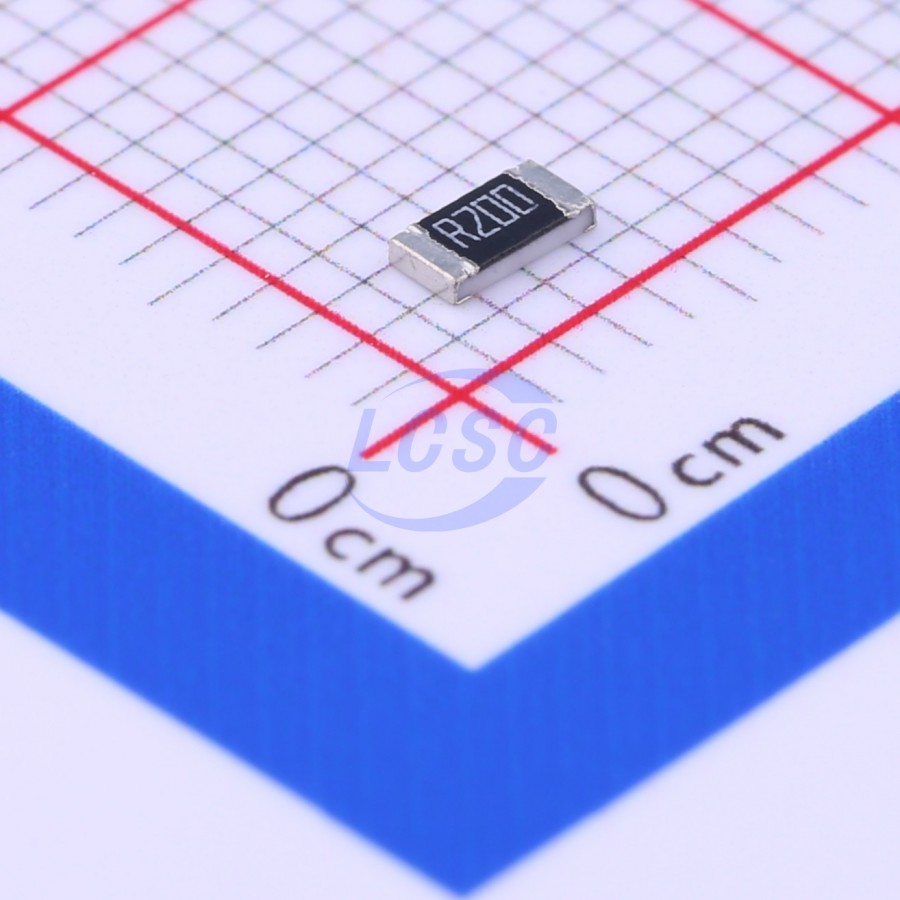

PT1206FR-7W0R2L
500mW 200mΩ Thick Film Resistor ±75ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 0.2Ω ±1% 500mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- PT1206FR-7W0R2L
- Store part #
- C309533
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
750 in stock
#C309533
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.23 | ₹102.30 |
| 100+ | ₹8.41 | ₹841.00 |
| 300+ | ₹7.51 | ₹2,253.00 |
| 1,000+ | ₹6.84 | ₹6,840.00 |
| 5,000+ | ₹6.15 | ₹30,750.00 |
| 10,000+ | ₹5.89 | ₹58,900.00 |
10 × ₹10.23
₹102.30
excl. GST
₹120.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT1206FR-7W0R2L
₹102.30 for 10 + GST
Specifications
- Power(Watts)
- 500mW
- Resistance
- 200mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| ERJ-8BSFR20V#C2079520PANASONIC · 1206 | PANASONIC | 1206 | On request | Price on request | Quote | |
 | RCWE1206R200FKEA#C4144187VISHAY · 1206 | VISHAY | 1206 | 99 | ₹52.46 · 99 in stock | View |
 | HP06W2F200LT5E#C473037UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 4,180 | ₹3.93 · 4,180 in stock | View |
 | FPL1206FR200TS#C7467885FOJAN · 1206 | FOJAN | 1206 | 49,650 | ₹9.26 · 49,650 in stock | View |
 | HoJLRH1206-1W-200mR-1%#C46594294Milliohm · 1206 | Milliohm | 1206 | 7,740 | ₹7.03 · 7,740 in stock | View |
