YAGEODatasheet (PDF)

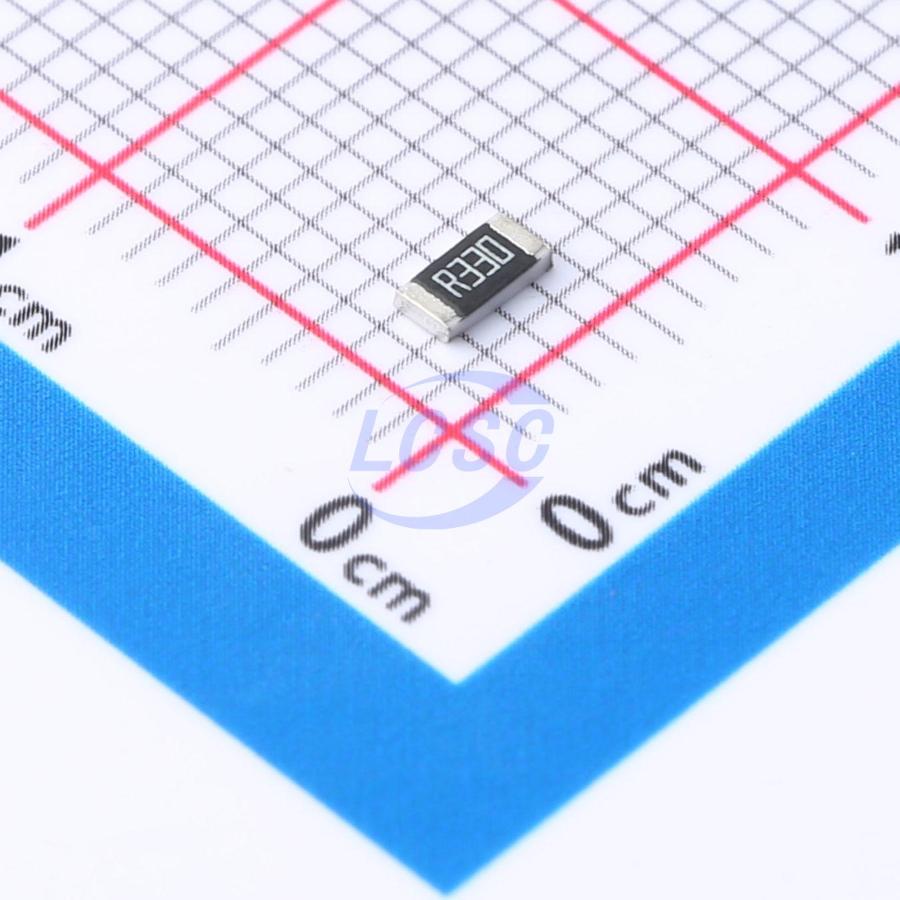

PT1206FR-7W0R33L
500mW 330mΩ Thick Film Resistor ±75ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 0.33Ω ±1% 500mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- PT1206FR-7W0R33L
- Store part #
- C858786
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
480 in stock
#C858786
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.15 | ₹81.50 |
| 100+ | ₹6.75 | ₹675.00 |
| 300+ | ₹6.05 | ₹1,815.00 |
| 1,000+ | ₹5.52 | ₹5,520.00 |
| 5,000+ | ₹5.09 | ₹25,450.00 |
| 10,000+ | ₹4.88 | ₹48,800.00 |
10 × ₹8.15
₹81.50
excl. GST
₹96.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT1206FR-7W0R33L
₹81.50 for 10 + GST
Specifications
- Power(Watts)
- 500mW
- Resistance
- 330mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FPL1206FR330TS#C7468697FOJAN · 1206 | FOJAN | 1206 | 15,680 | ₹3.59 · 15,680 in stock | View |
 | RL1206FR-7W0R33L#C859929YAGEO · 1206 | YAGEO | 1206 | 8,400 | ₹3.20 · 8,400 in stock | View |
 | HoJLRH1206-1W-330mR-1%#C46594298Milliohm · 1206 | Milliohm | 1206 | 1,130 | ₹7.45 · 1,130 in stock | View |
| CRM1206AFX-R330ELF#C19947127BOURNS · 1206 | BOURNS | 1206 | On request | Price on request | Quote | |
 | RCWE1206R330FKEA#C2076455VISHAY · 1206 | VISHAY | 1206 | On request | Price on request | Quote |
