YAGEODatasheet (PDF)

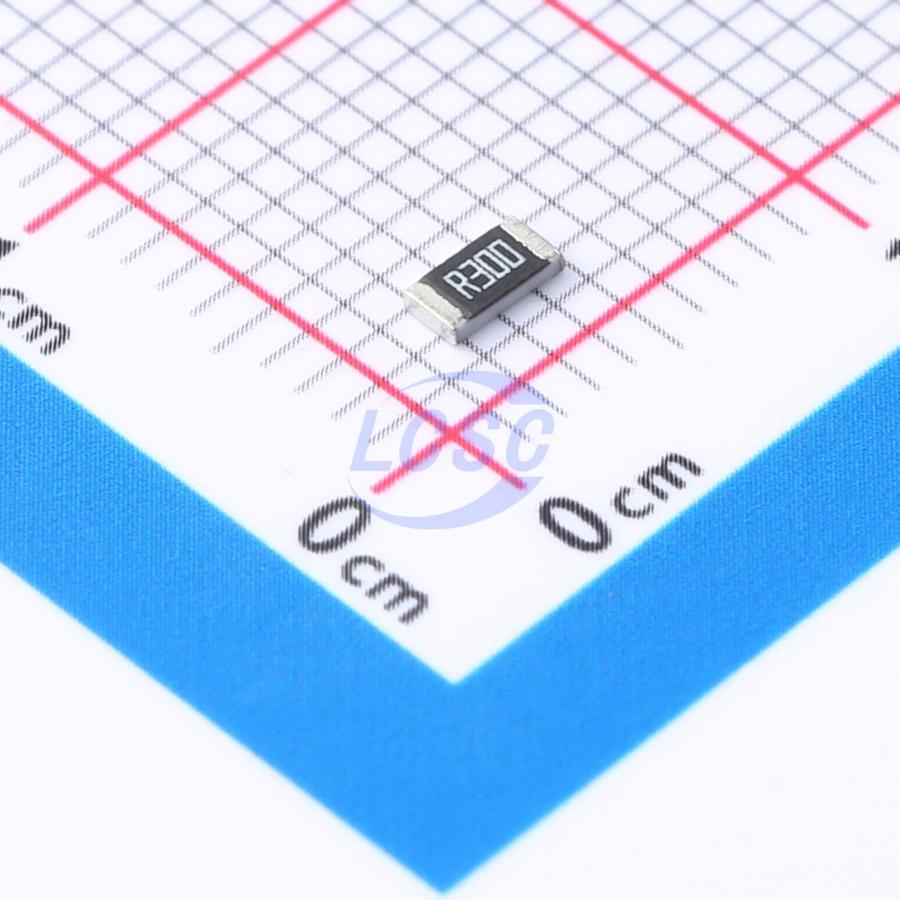

PT1206FR-7W0R3L
300mΩ 500mW Thick Film Resistor ±75ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 0.3Ω ±1% 0.5W 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- PT1206FR-7W0R3L
- Store part #
- C858790
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,910 in stock
#C858790
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.73 | ₹67.30 |
| 100+ | ₹5.58 | ₹558.00 |
| 300+ | ₹5.00 | ₹1,500.00 |
| 1,000+ | ₹4.56 | ₹4,560.00 |
| 5,000+ | ₹4.21 | ₹21,050.00 |
| 10,000+ | ₹4.04 | ₹40,400.00 |
10 × ₹6.73
₹67.30
excl. GST
₹79.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT1206FR-7W0R3L
₹67.30 for 10 + GST
Specifications
- Resistance
- 300mΩ
- Power(Watts)
- 500mW
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ADG06WR300FT#C51899374FH · 1206 | FH | 1206 | 2,400 | ₹11.03 · 2,400 in stock | View |
 | RL1206FR-7W0R3L#C723651YAGEO · 1206 | YAGEO | 1206 | 14,260 | ₹4.09 · 14,260 in stock | View |
 | WW12PR300FTL#C305330Walsin · 1206 | Walsin | 1206 | 4,060 | ₹10.29 · 4,060 in stock | View |
 | MFLA1206R3000FS#C6224025EATON · 1206 | EATON | 1206 | 840 | ₹34.52 · 840 in stock | View |
 | HoJLRH1206-1W-300mR-1%#C46594297Milliohm · 1206 | Milliohm | 1206 | 34,250 | ₹6.95 · 34,250 in stock | View |
