YAGEODatasheet (PDF)

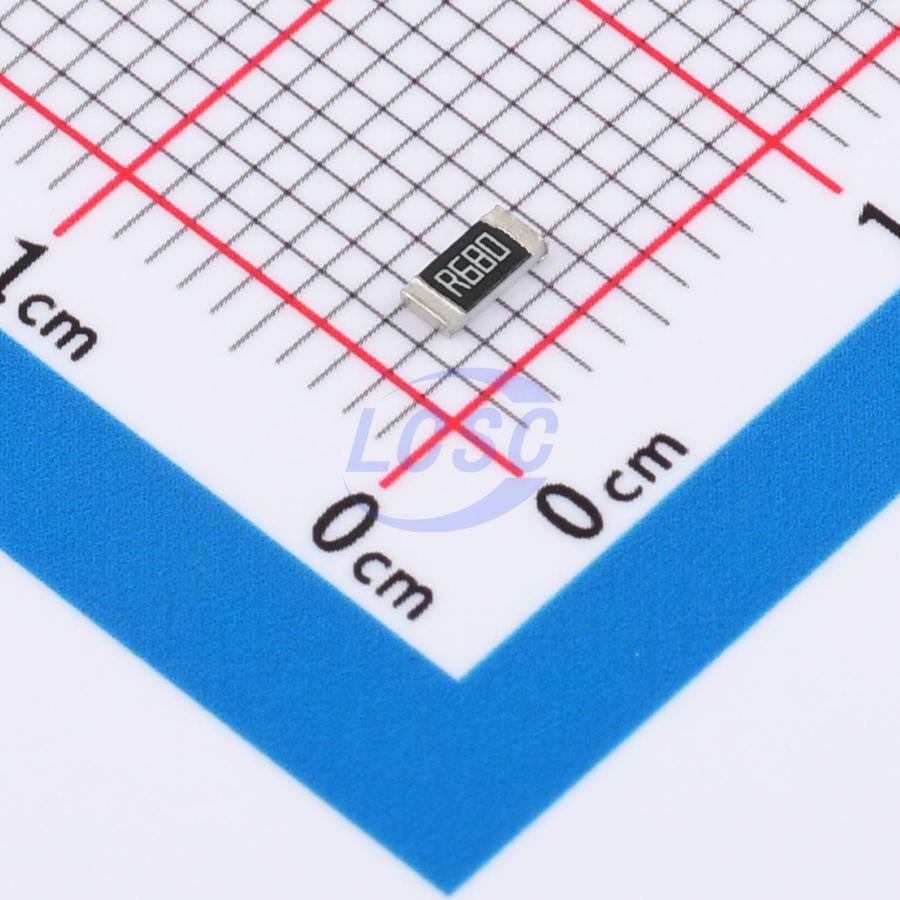

PT1206FR-7W0R68L
500mW 680mΩ Thick Film Resistor ±75ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 0.68Ω ±1% 500mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- PT1206FR-7W0R68L
- Store part #
- C858805
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C858805
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.15 | ₹83.00 |
| 200+ | ₹3.28 | ₹656.00 |
| 600+ | ₹2.79 | ₹1,674.00 |
| 5,000+ | ₹2.49 | ₹12,450.00 |
| 10,000+ | ₹2.24 | ₹22,400.00 |
| 20,000+ | ₹2.10 | ₹42,000.00 |
20 × ₹4.15
₹83.00
excl. GST
₹97.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT1206FR-7W0R68L
₹83.00 for 20 + GST
Specifications
- Power(Watts)
- 500mW
- Resistance
- 680mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HP06W2F680LT5E#C2759113UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 40 | ₹6.56 · 40 in stock | View |
 | RL1206FR-7W0R68L#C859937YAGEO · 1206 | YAGEO | 1206 | 3,680 | ₹3.90 · 3,680 in stock | View |
 | HoJLRH1206-1W-680mR-1%#C46594306Milliohm · 1206 | Milliohm | 1206 | 3,120 | ₹6.31 · 3,120 in stock | View |
 | CRH1206FR680P05Z#C175809EVER OHMS · 1206 | EVER OHMS | 1206 | On request | ₹2.06 · 0 in stock | View |
| CRM1206AFX-R680ELF#C19947130BOURNS · 1206 | BOURNS | 1206 | On request | Price on request | Quote | |
