YAGEODatasheet (PDF)

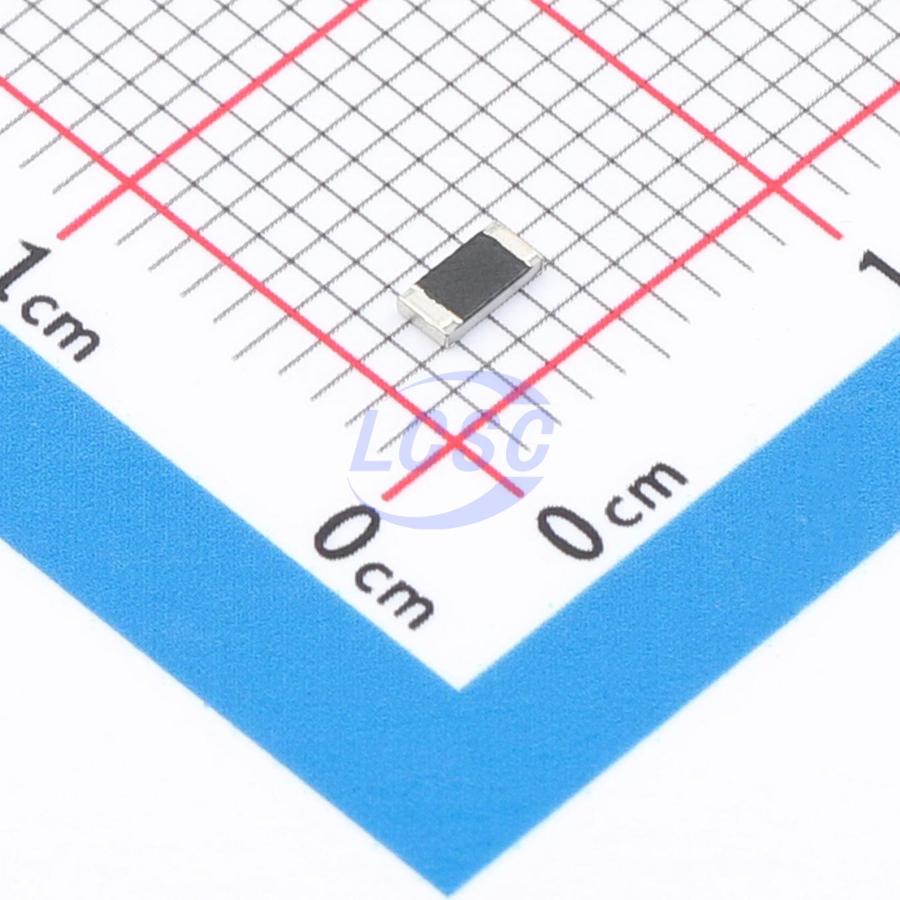

PT1206FR-7W0R6L
500mW 600mΩ Thick Film Resistor ±75ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 600mΩ ±1% 0.5W 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- PT1206FR-7W0R6L
- Store part #
- C20160684
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,970 in stock
#C20160684
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.49 | ₹84.90 |
| 100+ | ₹6.93 | ₹693.00 |
| 300+ | ₹6.15 | ₹1,845.00 |
| 1,000+ | ₹5.57 | ₹5,570.00 |
| 5,000+ | ₹5.09 | ₹25,450.00 |
| 10,000+ | ₹4.86 | ₹48,600.00 |
10 × ₹8.49
₹84.90
excl. GST
₹100.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT1206FR-7W0R6L
₹84.90 for 10 + GST
Specifications
- Power(Watts)
- 500mW
- Resistance
- 600mΩ
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CSR1206FTR600#C2493894SEI(Stackpole Electronics Inc.) · 1206 | SEI(Stackpole Electronics Inc.) | 1206 | On request | Price on request | Quote | |
| CSR1206FKR600#C2499062SEI(Stackpole Electronics Inc.) · 1206 | SEI(Stackpole Electronics Inc.) | 1206 | On request | Price on request | Quote | |
| MFLA1206R6000FS#C7226169EATON · 1206 | EATON | 1206 | On request | ₹4.25 · 0 in stock | View | |
