YAGEODatasheet (PDF)

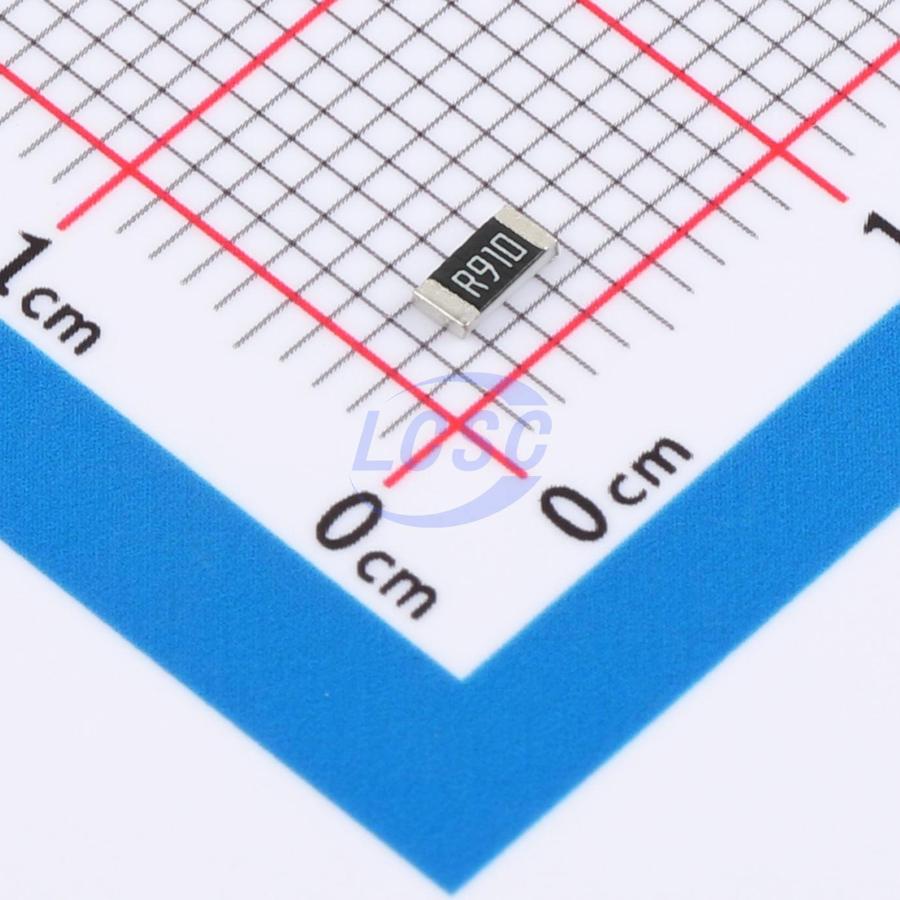

PT1206FR-7W0R91L
500mW 910mΩ Thick Film Resistor ±75ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 0.91Ω ±1% 500mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- PT1206FR-7W0R91L
- Store part #
- C858809
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,320 in stock
#C858809
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.27 | ₹85.40 |
| 200+ | ₹3.36 | ₹672.00 |
| 600+ | ₹2.86 | ₹1,716.00 |
| 5,000+ | ₹2.55 | ₹12,750.00 |
| 10,000+ | ₹2.30 | ₹23,000.00 |
| 20,000+ | ₹2.16 | ₹43,200.00 |
20 × ₹4.27
₹85.40
excl. GST
₹100.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT1206FR-7W0R91L
₹85.40 for 20 + GST
Specifications
- Power(Watts)
- 500mW
- Resistance
- 910mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FPL1206FR910TS#C7467853FOJAN · 1206 | FOJAN | 1206 | 12,250 | ₹2.94 · 12,250 in stock | View |
 | RL1206FR-7W0R91L#C136987YAGEO · 1206 | YAGEO | 1206 | 5,000 | ₹3.25 · 5,000 in stock | View |
 | HoJLRH1206-1W-910mR-1%#C46594310Milliohm · 1206 | Milliohm | 1206 | 1,740 | ₹6.24 · 1,740 in stock | View |
| CRM1206-FX-R910ELF#C2074931BOURNS · 1206 | BOURNS | 1206 | On request | Price on request | Quote | |
 | HP06W2F910LT5E#C2759098UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | On request | Price on request | Quote |
