YAGEODatasheet (PDF)

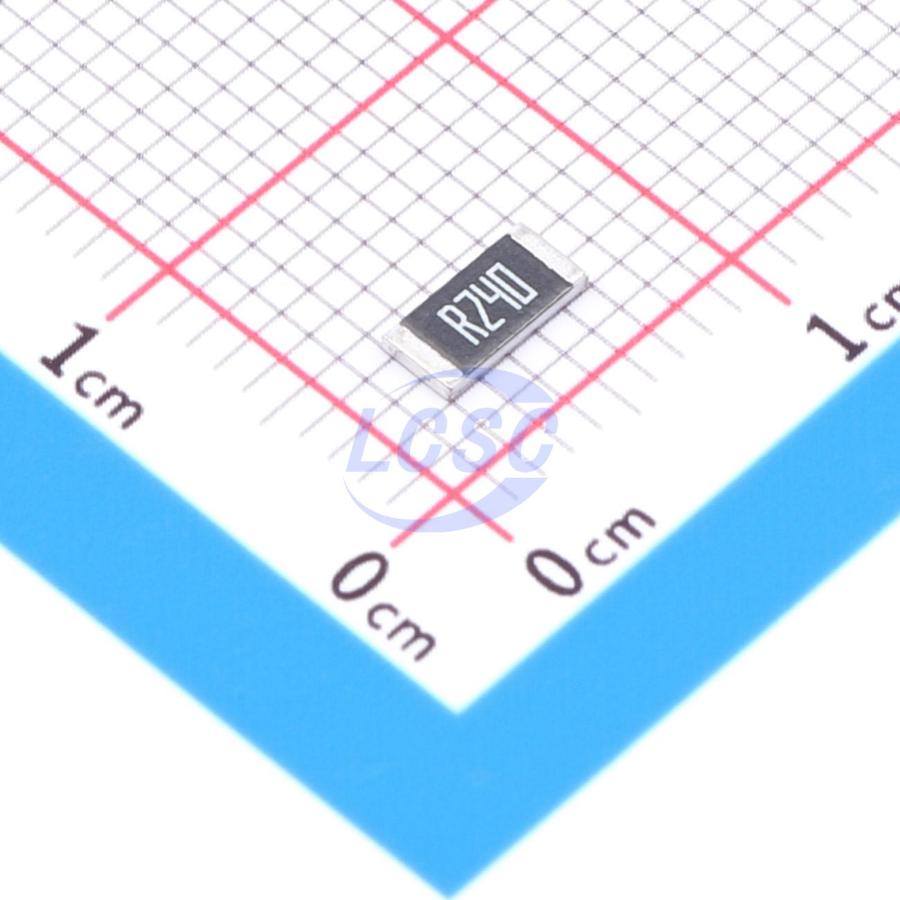

PT2010FK-070R24L
240mΩ 750mW Thick Film Resistor ±75ppm/℃ ±1% 2010 Chip Resistor - Surface Mount RoHS
2010ROHS3 CompliantActive
RES 0.24Ω ±1% 750mW 2010
- Manufacturer
- YAGEO
- Manufacturer part #
- PT2010FK-070R24L
- Store part #
- C2145181
- Package / case
- 2010
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,570 in stock
#C2145181
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.13 | ₹50.65 |
| 50+ | ₹9.01 | ₹450.50 |
| 150+ | ₹8.45 | ₹1,267.50 |
| 500+ | ₹8.03 | ₹4,015.00 |
| 2,500+ | ₹7.69 | ₹19,225.00 |
| 4,000+ | ₹7.52 | ₹30,080.00 |
5 × ₹10.13
₹50.65
excl. GST
₹59.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT2010FK-070R24L
₹50.65 for 5 + GST
Specifications
- Resistance
- 240mΩ
- Power(Watts)
- 750mW
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RTT20R240FTE#C333478RALEC · 2010 | RALEC | 2010 | 10 | ₹5.75 · 10 in stock | View |
 | 201007F240LT4E#C421884UNI-ROYAL · 2010 | UNI-ROYAL | 2010 | 250 | ₹4.05 · 250 in stock | View |
 | GR2010F0R24T4G00#C49656616GiantOhm · 2010 | GiantOhm | 2010 | 3,800 | ₹2.60 · 3,800 in stock | View |
 | FRL2010FR240TS#C5713406FOJAN · 2010 | FOJAN | 2010 | 2,220 | ₹3.64 · 2,220 in stock | View |
 | RL2010FK-070R24L#C876390YAGEO · 2010 | YAGEO | 2010 | 3,975 | ₹11.73 · 3,975 in stock | View |
