YAGEODatasheet (PDF)

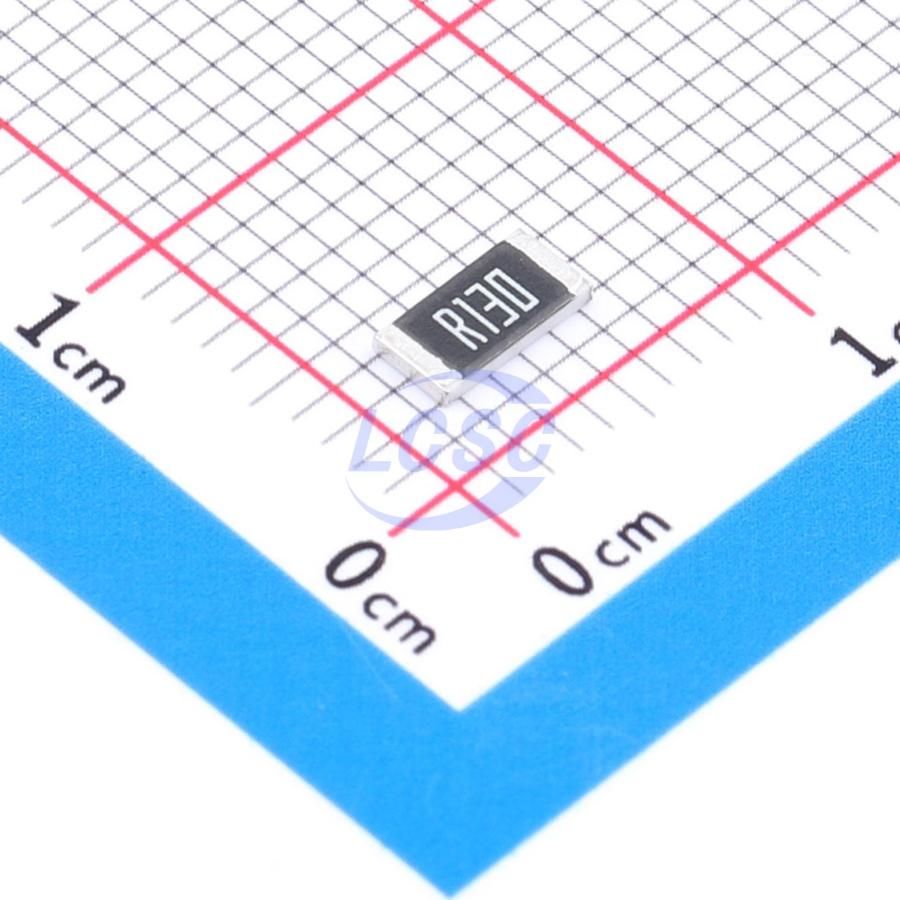

PT2010FK-7W0R13L
130mΩ 1W Thick Film Resistor ±75ppm/℃ ±1% 2010 Chip Resistor - Surface Mount RoHS
2010ROHS CompliantActive
RES 0.13Ω ±1% 1W 2010
- Manufacturer
- YAGEO
- Manufacturer part #
- PT2010FK-7W0R13L
- Store part #
- C5454406
- Package / case
- 2010
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,345 in stock
#C5454406
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.03 | ₹75.15 |
| 50+ | ₹12.09 | ₹604.50 |
| 150+ | ₹10.62 | ₹1,593.00 |
| 500+ | ₹9.53 | ₹4,765.00 |
| 2,500+ | ₹8.65 | ₹21,625.00 |
| 5,000+ | ₹8.20 | ₹41,000.00 |
5 × ₹15.03
₹75.15
excl. GST
₹88.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT2010FK-7W0R13L
₹75.15 for 5 + GST
Specifications
- Resistance
- 130mΩ
- Power(Watts)
- 1W
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| RLC73PW2HR13FTE#C20423802TE Connectivity · 2010 | TE Connectivity | 2010 | On request | Price on request | Quote | |
| RLC73PW2HR13FTDF#C20429099TE Connectivity · 2010 | TE Connectivity | 2010 | On request | ₹17.20 · 0 in stock | View | |
| 73WL6R130F#C3931771CTS · 2010 | CTS | 2010 | On request | ₹25.80 · 0 in stock | View | |
| CSRN2010FKR130#C4282256SEI(Stackpole Electronics Inc.) · 2010 | SEI(Stackpole Electronics Inc.) | 2010 | On request | Price on request | Quote | |
| WSL2010R1300FEA18#C3946088VISHAY · 2010 | VISHAY | 2010 | On request | Price on request | Quote | |
