YAGEODatasheet (PDF)

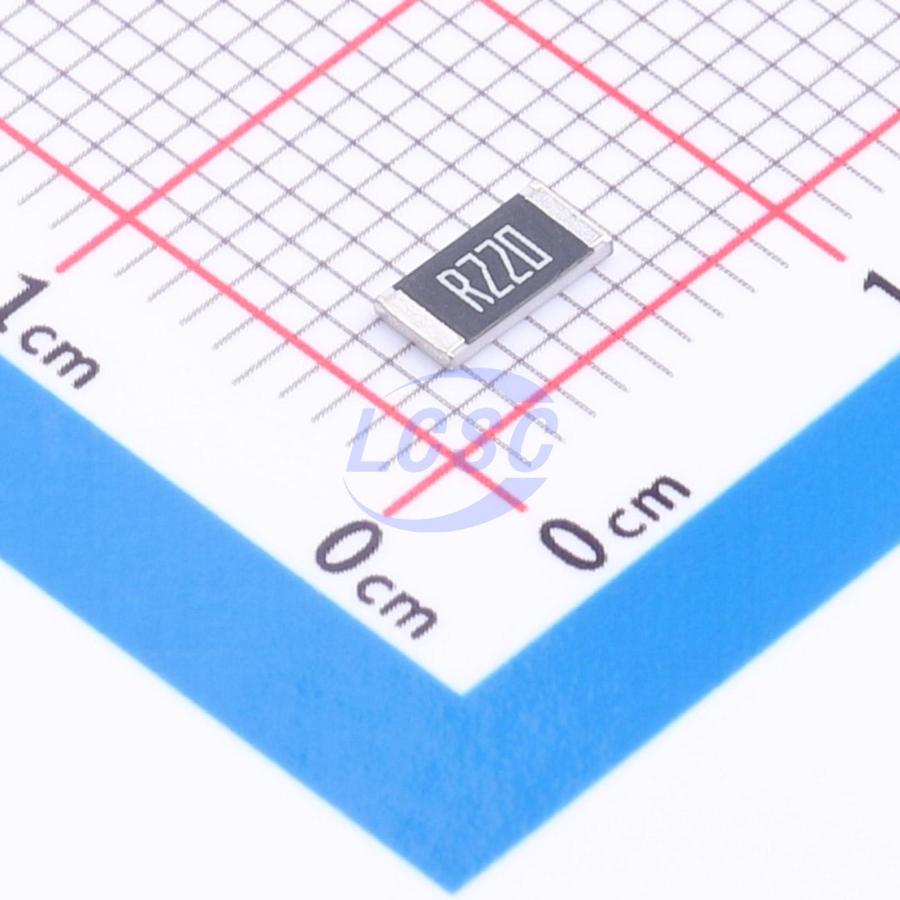

PT2010FK-7W0R22L
1W 220mΩ Thick Film Resistor ±75ppm/℃ ±1% 2010 Chip Resistor - Surface Mount RoHS
2010ROHS3 CompliantActive
RES 0.22Ω ±1% 1W 2010
- Manufacturer
- YAGEO
- Manufacturer part #
- PT2010FK-7W0R22L
- Store part #
- C875808
- Package / case
- 2010
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,045 in stock
#C875808
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.22 | ₹96.10 |
| 50+ | ₹15.37 | ₹768.50 |
| 150+ | ₹13.45 | ₹2,017.50 |
| 500+ | ₹12.01 | ₹6,005.00 |
| 2,500+ | ₹10.85 | ₹27,125.00 |
| 4,000+ | ₹10.28 | ₹41,120.00 |
5 × ₹19.22
₹96.10
excl. GST
₹113.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT2010FK-7W0R22L
₹96.10 for 5 + GST
Specifications
- Power(Watts)
- 1W
- Resistance
- 220mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WSLT2010R2200FEB18#C3995513VISHAY · 2010 | VISHAY | 2010 | 43 | ₹220.07 · 43 in stock | View |
| RCWE2010R220FKEA#C1711213VISHAY · 2010 | VISHAY | 2010 | On request | Price on request | Quote | |
| CSRN2010FKR220#C2540737SEI(Stackpole Electronics Inc.) · 2010 | SEI(Stackpole Electronics Inc.) | 2010 | On request | Price on request | Quote | |
| CSR2010FTR220#C2547082SEI(Stackpole Electronics Inc.) · 2010 | SEI(Stackpole Electronics Inc.) | 2010 | On request | Price on request | Quote | |
| 73WL6R220F#C4067301CTS · 2010 | CTS | 2010 | On request | Price on request | Quote | |
