YAGEODatasheet (PDF)

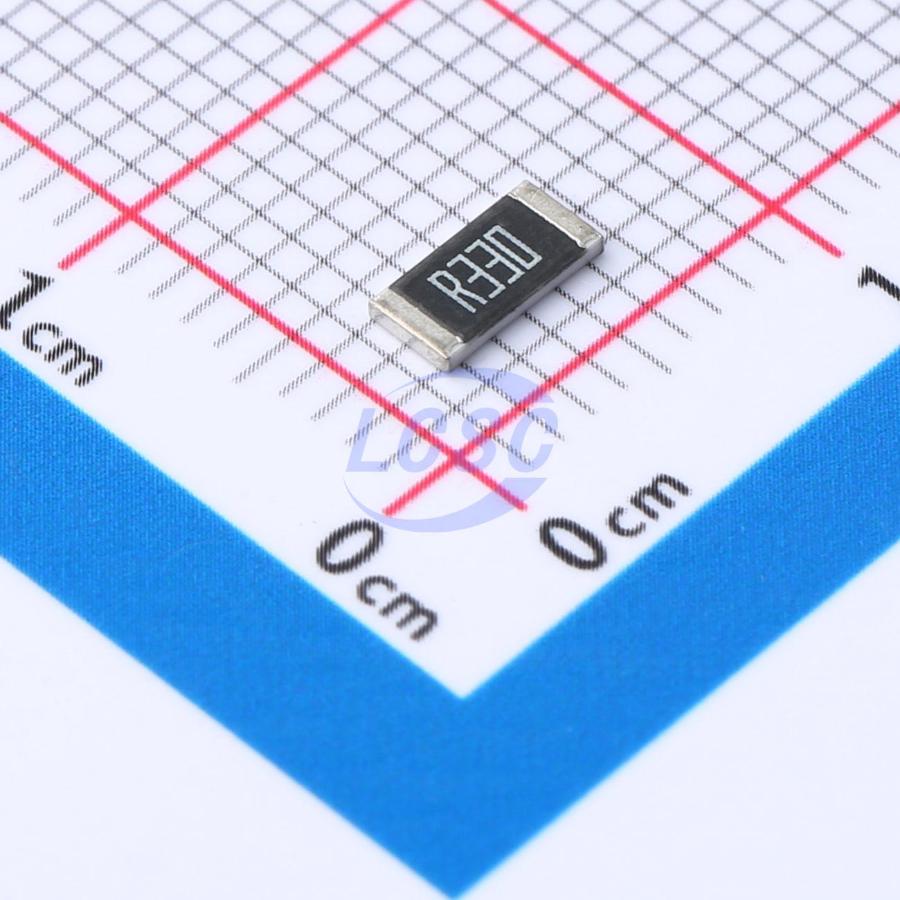

PT2010FK-7W0R33L
1W 330mΩ Thick Film Resistor ±75ppm/℃ ±1% 2010 Chip Resistor - Surface Mount RoHS
2010ROHS3 CompliantActive
RES 0.33Ω ±1% 1W 2010
- Manufacturer
- YAGEO
- Manufacturer part #
- PT2010FK-7W0R33L
- Store part #
- C875813
- Package / case
- 2010
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
835 in stock
#C875813
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.29 | ₹76.45 |
| 50+ | ₹12.30 | ₹615.00 |
| 150+ | ₹10.81 | ₹1,621.50 |
| 500+ | ₹9.70 | ₹4,850.00 |
| 2,500+ | ₹8.80 | ₹22,000.00 |
| 4,000+ | ₹8.35 | ₹33,400.00 |
5 × ₹15.29
₹76.45
excl. GST
₹90.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT2010FK-7W0R33L
₹76.45 for 5 + GST
Specifications
- Power(Watts)
- 1W
- Resistance
- 330mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CSRN2010FKR330#C2540676SEI(Stackpole Electronics Inc.) · 2010 | SEI(Stackpole Electronics Inc.) | 2010 | On request | Price on request | Quote | |
| CSR2010FTR330#C2547556SEI(Stackpole Electronics Inc.) · 2010 | SEI(Stackpole Electronics Inc.) | 2010 | On request | Price on request | Quote | |
| RCWE2010R330FKEA#C4185318VISHAY · 2010 | VISHAY | 2010 | On request | Price on request | Quote | |
| CRM2010AFX-R330ELF#C5629596BOURNS · 2010 | BOURNS | 2010 | On request | ₹102.45 · 0 in stock | View | |
| WSL2010R3300FBA18#C3925068VISHAY · 2010 | VISHAY | 2010 | On request | Price on request | Quote | |
