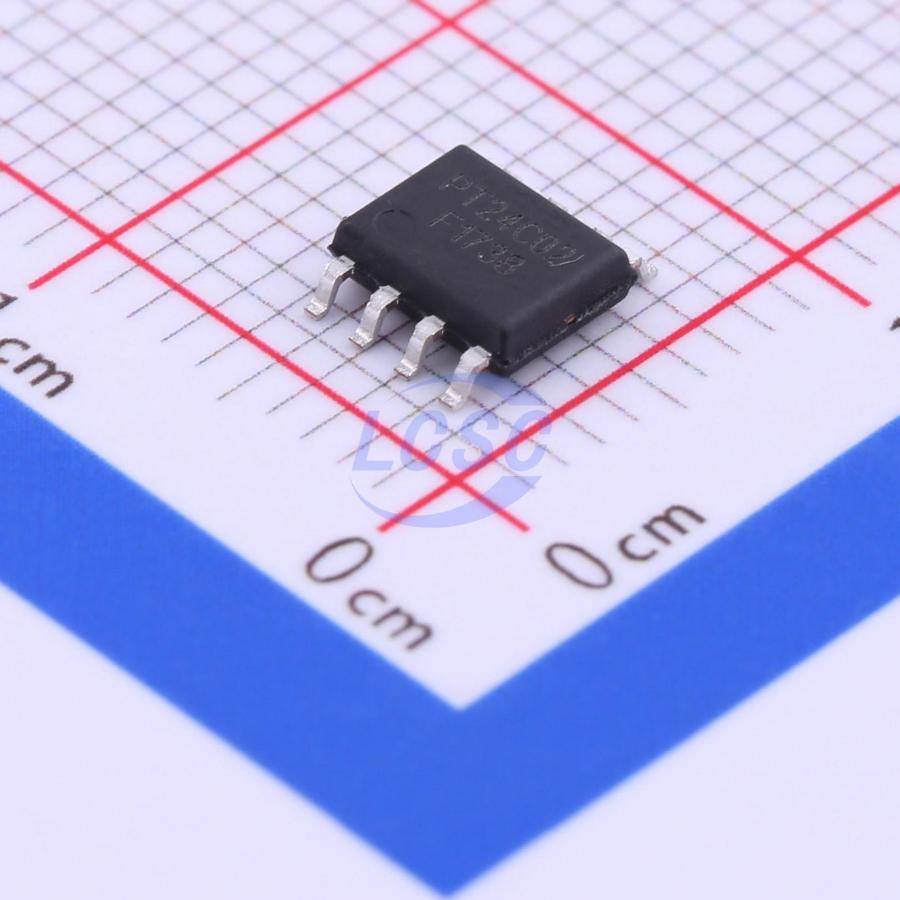

PT24C02
2Kbit 1MHz I2C SOP-8 Memory RoHS
2K bits Two-wire Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C351425
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.97 | ₹89.70 |
| 100+ | ₹7.09 | ₹709.00 |
| 300+ | ₹6.15 | ₹1,845.00 |
| 3,000+ | ₹5.45 | ₹16,350.00 |
| 6,000+ | ₹4.88 | ₹29,280.00 |
| 9,000+ | ₹4.60 | ₹41,400.00 |
10 × ₹8.97
₹89.70
excl. GST
₹105.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PT24C02
₹89.70 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.188 g
Overview
The PT24 C02/PT24 C04/PT24 C08/PT24 C16 provides 2048/4096/8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256/512/1024/2048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The PT24 C02/PT24 C04/PT24 C08/PT24 C16 is available in space-saving 8-lead PDIP, 8-lead SOP, 8-lead TSSOP packages and is accessed via a two-wire serial interface.
Key features
- Wide Voltage Operation - Vcc = 1.7V to 5.5V
- Operating Ambient Temperature: -40 ℃ to +85 ℃
- Internally Organized: PT24C02, 256 X 8 (2K bits); PT24C04, 512 X 8 (4K bits); PT24C08, 1024 X 8 (8K bits); PT24C16, 2048 X 8 (16K bits)
- Two-wire Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- 1 MHz (5V), 400 kHz (1.7V, 2.5V, 2.7V) Compatibility
- Write Protect Pin for Hardware Data Protection
- 8-byte Page (2K), 16-byte Page (4K, 8K, 16K) Write Modes
- Partial Page Writes Allowed
- Self-timed Write Cycle (5 ms max)
- High-reliability - Endurance: 1 Million Write Cycles; Data Retention: 100 Years
- 8-lead PDIP/SOP/TSSOP Packages
