YAGEODatasheet (PDF)

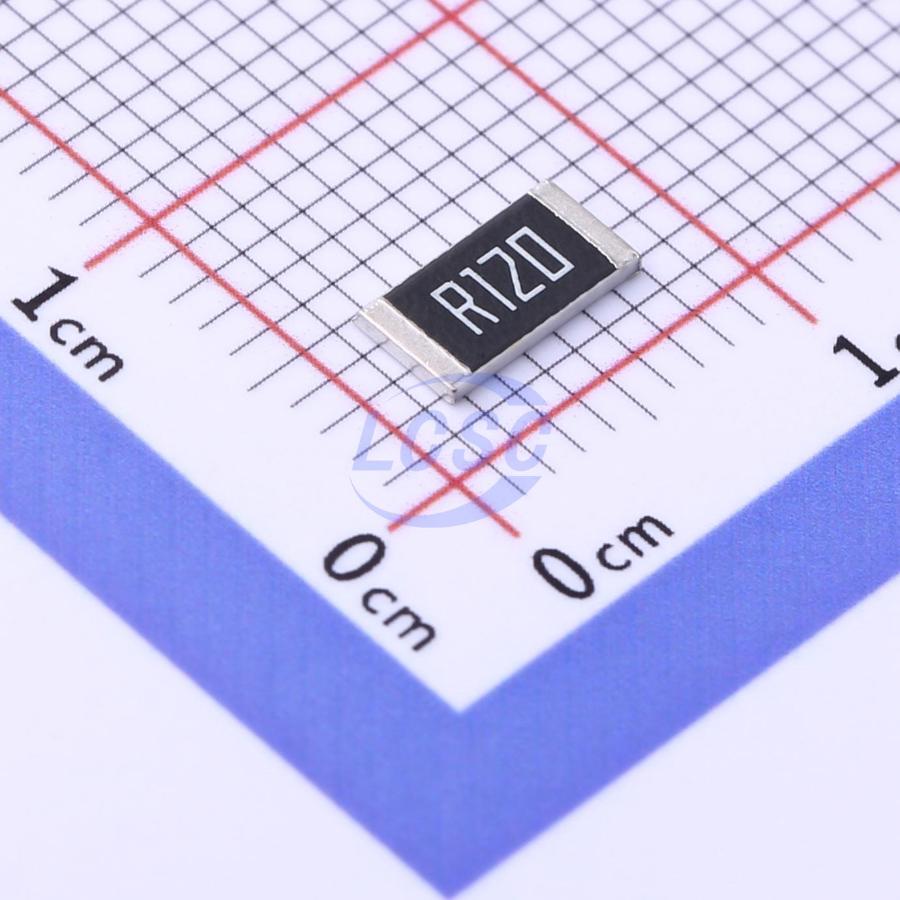

PT2512FK-7W0R12L
120mΩ 2W Thick Film Resistor ±75ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 0.12Ω ±1% 2W 2512
- Manufacturer
- YAGEO
- Manufacturer part #
- PT2512FK-7W0R12L
- Store part #
- C875871
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,820 in stock
#C875871
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.03 | ₹115.15 |
| 50+ | ₹19.26 | ₹963.00 |
| 150+ | ₹17.37 | ₹2,605.50 |
| 500+ | ₹15.96 | ₹7,980.00 |
| 2,500+ | ₹14.13 | ₹35,325.00 |
| 4,000+ | ₹13.56 | ₹54,240.00 |
5 × ₹23.03
₹115.15
excl. GST
₹135.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT2512FK-7W0R12L
₹115.15 for 5 + GST
Specifications
- Resistance
- 120mΩ
- Power(Watts)
- 2W
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.064 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR2512H-22R120F2#C7422099RALEC · 2512 | RALEC | 2512 | 1,075 | ₹18.73 · 1,075 in stock | View |
 | TLRP3A30CR120FTE#C3937442TE Connectivity · 2512 | TE Connectivity | 2512 | 344 | ₹80.17 · 344 in stock | View |
 | CRH2512FR120E04Z#C176042EVER OHMS · 2512 | EVER OHMS | 2512 | On request | Price on request | Quote |
| CRM2512AFX-R120ELF#C19947141BOURNS · 2512 | BOURNS | 2512 | On request | Price on request | Quote | |
| RCWE2512R120FKEA#C2107264VISHAY · 2512 | VISHAY | 2512 | On request | Price on request | Quote | |
