YAGEODatasheet (PDF)

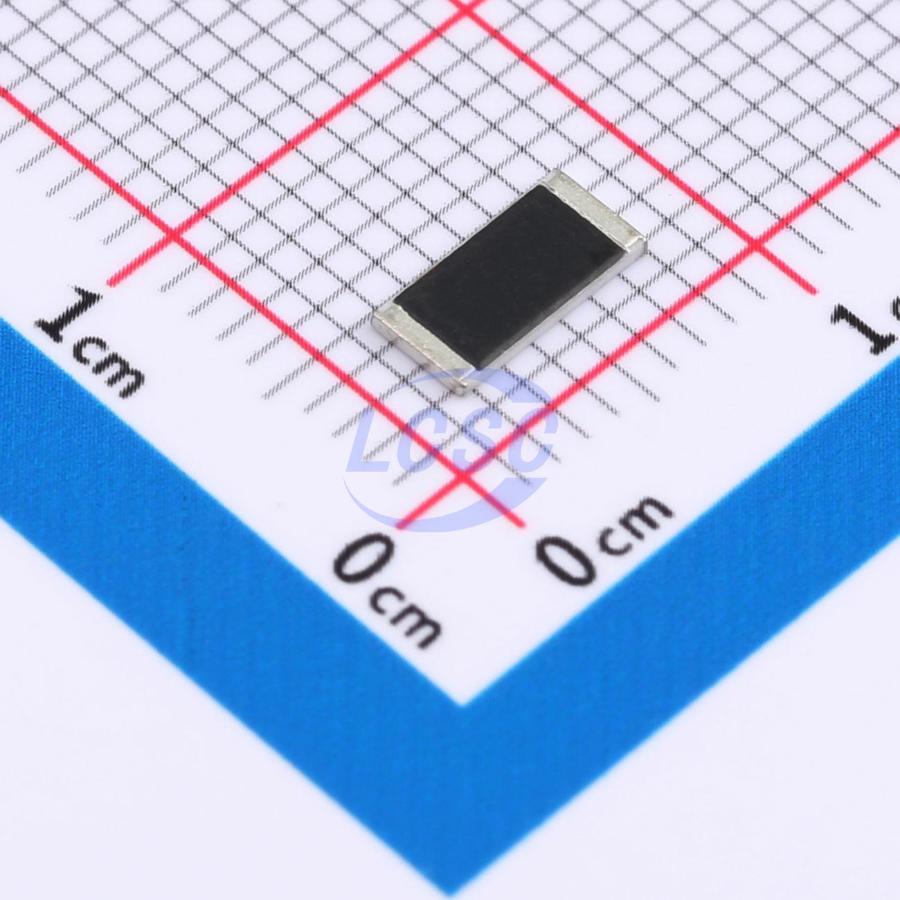

PT2512FK-7W0R14L
140mΩ 2W Thick Film Resistor ±75ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 0.14Ω ±1% 2W 2512
- Manufacturer
- YAGEO
- Manufacturer part #
- PT2512FK-7W0R14L
- Store part #
- C875873
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,920 in stock
#C875873
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.39 | ₹111.95 |
| 50+ | ₹18.56 | ₹928.00 |
| 150+ | ₹16.66 | ₹2,499.00 |
| 500+ | ₹15.23 | ₹7,615.00 |
| 2,500+ | ₹14.09 | ₹35,225.00 |
| 4,000+ | ₹13.51 | ₹54,040.00 |
5 × ₹22.39
₹111.95
excl. GST
₹132.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT2512FK-7W0R14L
₹111.95 for 5 + GST
Specifications
- Resistance
- 140mΩ
- Power(Watts)
- 2W
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.064 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| RLC73PW3AR14FTDF#C20518014TE Connectivity · 2512 | TE Connectivity | 2512 | On request | Price on request | Quote | |
| RLC73PW3AR14FTDG#C20518480TE Connectivity · 2512 | TE Connectivity | 2512 | On request | Price on request | Quote | |
| HP122WF140LT4E#C2775866UNI-ROYAL · 2512 | UNI-ROYAL | 2512 | On request | Price on request | Quote | |
| MSMA2512R1400FEN#C5677899EATON · 2512 | EATON | 2512 | On request | ₹41.01 · 0 in stock | View | |
 | RLH25FEER140#C7421573TA-I Tech · 2512 | TA-I Tech | 2512 | On request | ₹2.16 · 0 in stock | View |
