YAGEODatasheet (PDF)

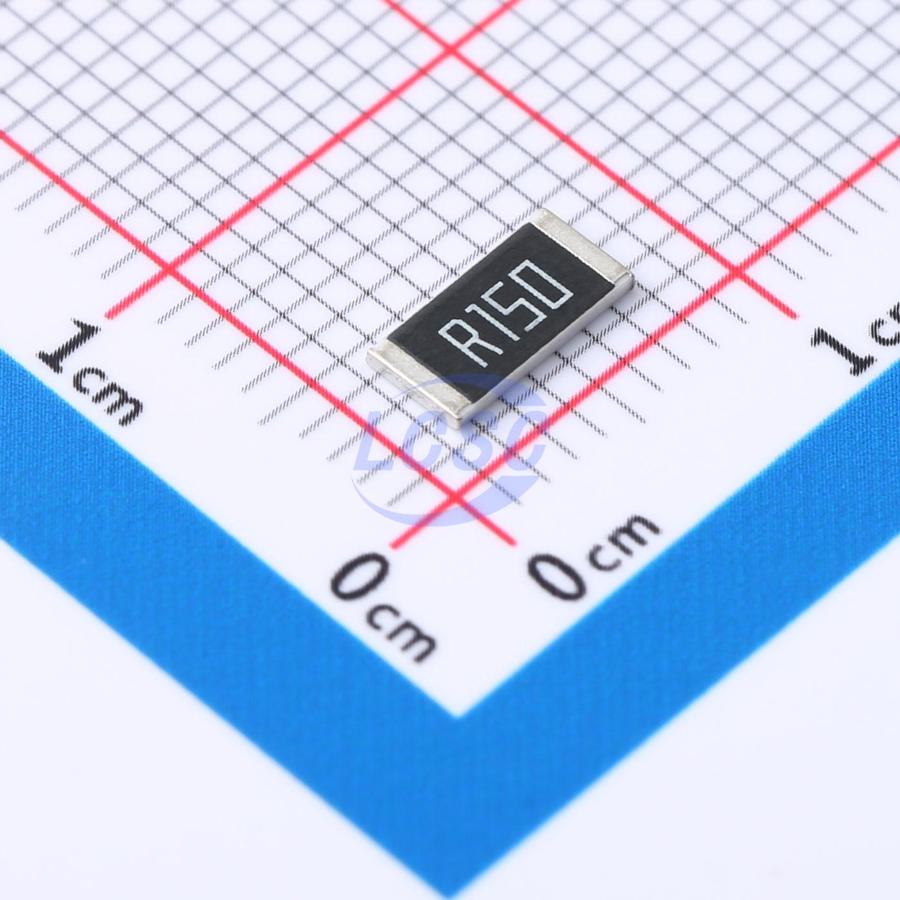

PT2512FK-7W0R15L
150mΩ 2W Thick Film Resistor ±75ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 0.15Ω ±1% 2W 2512
- Manufacturer
- YAGEO
- Manufacturer part #
- PT2512FK-7W0R15L
- Store part #
- C723473
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,605 in stock
#C723473
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.05 | ₹95.25 |
| 50+ | ₹15.76 | ₹788.00 |
| 150+ | ₹14.12 | ₹2,118.00 |
| 500+ | ₹12.89 | ₹6,445.00 |
| 2,500+ | ₹11.90 | ₹29,750.00 |
| 4,000+ | ₹11.41 | ₹45,640.00 |
5 × ₹19.05
₹95.25
excl. GST
₹112.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT2512FK-7W0R15L
₹95.25 for 5 + GST
Specifications
- Resistance
- 150mΩ
- Power(Watts)
- 2W
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.063 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RLP73K3AR15FTDF#C4268718TE Connectivity · 2512 | TE Connectivity | 2512 | 48 | ₹77.90 · 48 in stock | View |
 | LR2512H-22R150F2#C7422100RALEC · 2512 | RALEC | 2512 | 520 | ₹14.82 · 520 in stock | View |
 | TGL251220FR150E04Z#C881082EVER OHMS · 2512 | EVER OHMS | 2512 | 3,820 | ₹16.07 · 3,820 in stock | View |
 | TLRP3A30CR150FTE#C3945086TE Connectivity · 2512 | TE Connectivity | 2512 | 146 | ₹91.04 · 146 in stock | View |
| RLC73PD3AR15FTDG#C20521283TE Connectivity · 2512 | TE Connectivity | 2512 | On request | Price on request | Quote | |
