YAGEODatasheet (PDF)

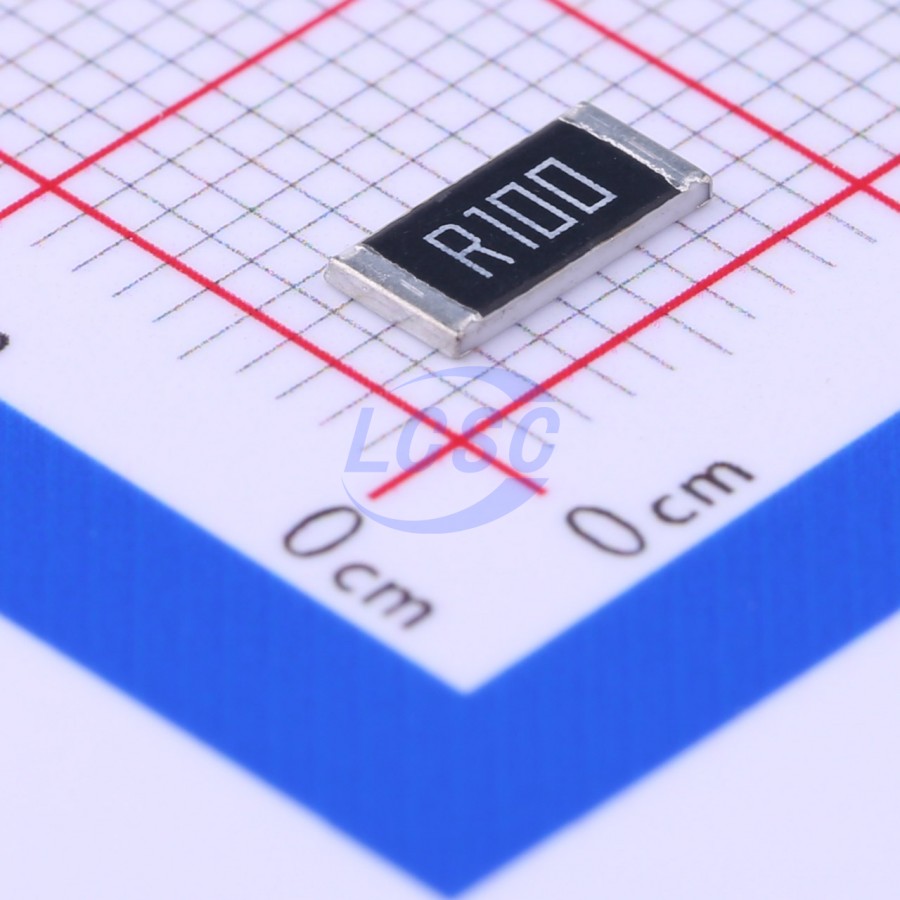

PT2512FK-7W0R1L
2W 100mΩ Thick Film Resistor ±100ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 0.1Ω ±1% 2W 2512
- Manufacturer
- YAGEO
- Manufacturer part #
- PT2512FK-7W0R1L
- Store part #
- C309534
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,550 in stock
#C309534
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.56 | ₹127.80 |
| 50+ | ₹20.65 | ₹1,032.50 |
| 150+ | ₹18.55 | ₹2,782.50 |
| 500+ | ₹15.93 | ₹7,965.00 |
| 2,500+ | ₹14.41 | ₹36,025.00 |
| 4,000+ | ₹13.71 | ₹54,840.00 |
5 × ₹25.56
₹127.80
excl. GST
₹150.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT2512FK-7W0R1L
₹127.80 for 5 + GST
Specifications
- Power(Watts)
- 2W
- Resistance
- 100mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.062 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RCWE2512R100FKEA#C2093721VISHAY · 2512 | VISHAY | 2512 | 511 | ₹94.44 · 511 in stock | View |
 | CRM2512-FX-R100ELF#C840603BOURNS · 2512 | BOURNS | 2512 | 8,910 | ₹34.11 · 8,910 in stock | View |
 | MFHA2512R1000FE#C5795869EATON · 2512 | EATON | 2512 | 9 | ₹33.66 · 9 in stock | View |
 | PA2512FKF7W0R1E#C728355YAGEO · 2512 | YAGEO | 2512 | 7,075 | ₹27.00 · 7,075 in stock | View |
 | PA2512FKF7T0R1E#C5706825YAGEO · 2512 | YAGEO | 2512 | 2,025 | ₹34.82 · 2,025 in stock | View |
