YAGEODatasheet (PDF)

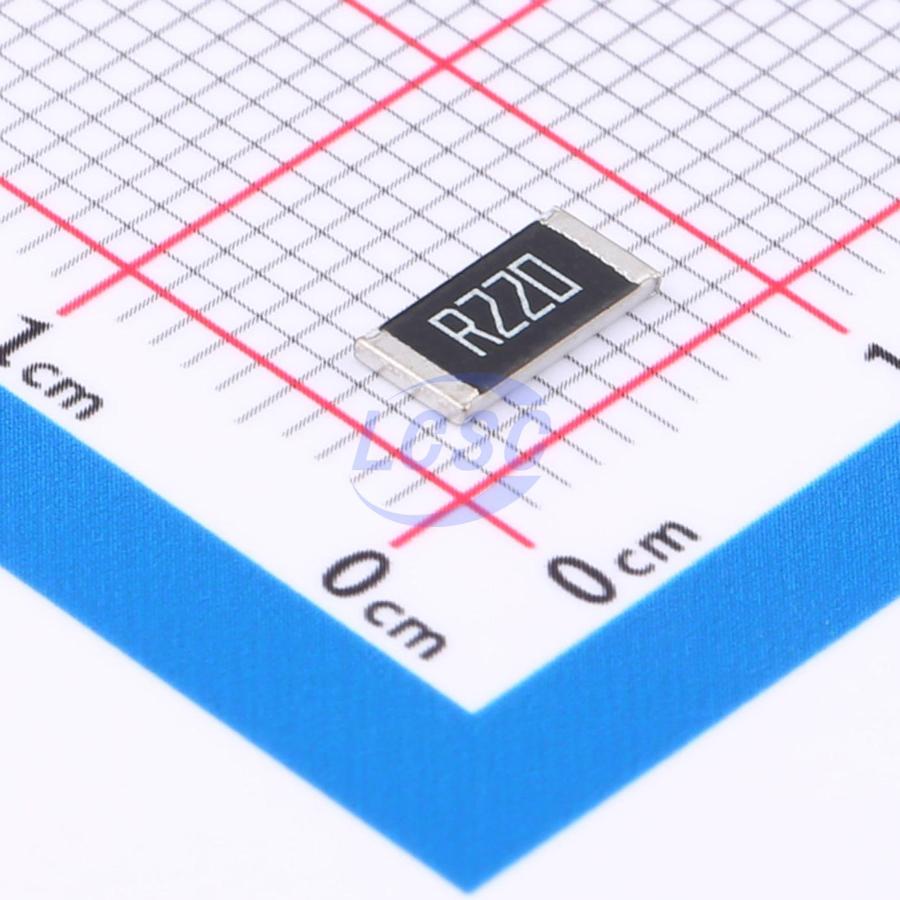

PT2512FK-7W0R22L
2W 220mΩ Thick Film Resistor ±75ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 0.22Ω ±1% 2W 2512
- Manufacturer
- YAGEO
- Manufacturer part #
- PT2512FK-7W0R22L
- Store part #
- C875875
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,045 in stock
#C875875
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.69 | ₹113.45 |
| 50+ | ₹18.84 | ₹942.00 |
| 150+ | ₹16.91 | ₹2,536.50 |
| 500+ | ₹15.47 | ₹7,735.00 |
| 2,500+ | ₹14.31 | ₹35,775.00 |
| 4,000+ | ₹13.73 | ₹54,920.00 |
5 × ₹22.69
₹113.45
excl. GST
₹133.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT2512FK-7W0R22L
₹113.45 for 5 + GST
Specifications
- Power(Watts)
- 2W
- Resistance
- 220mΩ
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.065 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| RCWE2512R220FKEA#C2076497VISHAY · 2512 | VISHAY | 2512 | 1,178 | ₹96.98 · 1,178 in stock | View | |
 | 3-2176057-3#C5439561TE Connectivity · 2512 | TE Connectivity | 2512 | 5 | ₹145.57 · 5 in stock | View |
 | FPL2512FR220TS#C7467846FOJAN · 2512 | FOJAN | 2512 | 8,240 | ₹7.55 · 8,240 in stock | View |
| 73WL7R220F#C1727733CTS · 2512 | CTS | 2512 | On request | ₹42.43 · 0 in stock | View | |
| CRM2512AFX-R220ELF#C19947144BOURNS · 2512 | BOURNS | 2512 | On request | Price on request | Quote | |
