YAGEODatasheet (PDF)

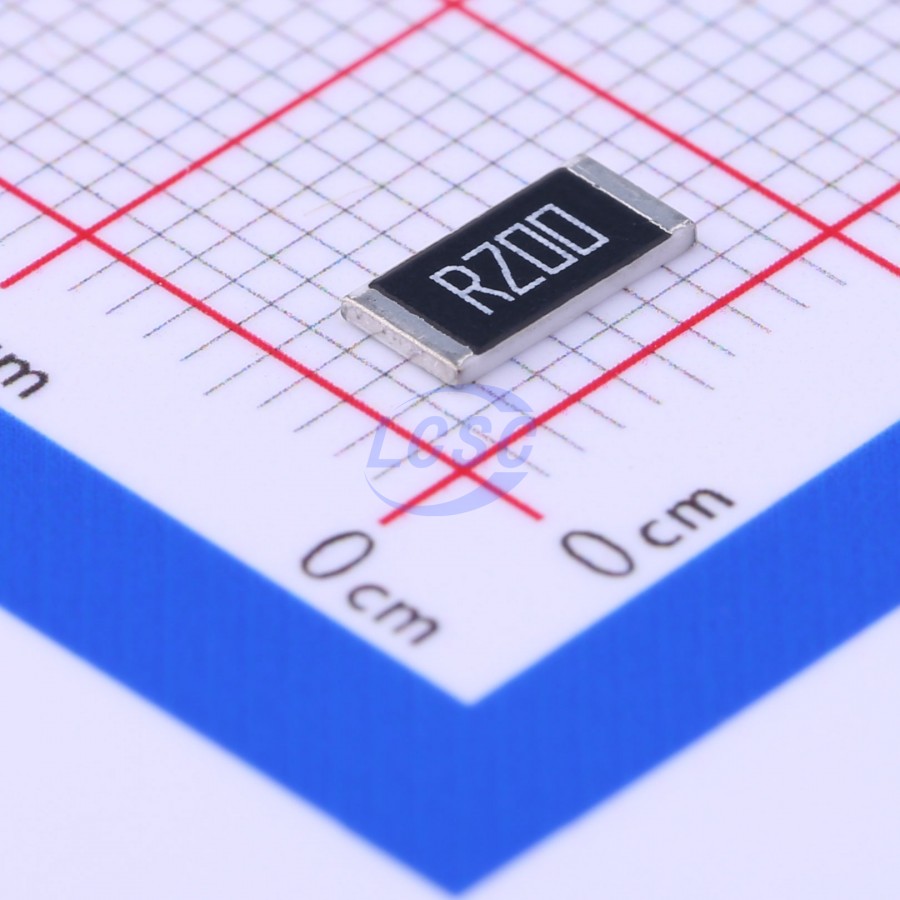

PT2512FK-7W0R2L
200mΩ 2W Thick Film Resistor ±75ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 0.2Ω ±1% 2W 2512
- Manufacturer
- YAGEO
- Manufacturer part #
- PT2512FK-7W0R2L
- Store part #
- C309535
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,250 in stock
#C309535
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.72 | ₹118.60 |
| 50+ | ₹18.99 | ₹949.50 |
| 150+ | ₹16.95 | ₹2,542.50 |
| 500+ | ₹14.42 | ₹7,210.00 |
| 2,500+ | ₹13.28 | ₹33,200.00 |
| 4,000+ | ₹12.61 | ₹50,440.00 |
5 × ₹23.72
₹118.60
excl. GST
₹139.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT2512FK-7W0R2L
₹118.60 for 5 + GST
Specifications
- Resistance
- 200mΩ
- Power(Watts)
- 2W
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.062 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CRH2512FR200E04Z#C176047EVER OHMS · 2512 | EVER OHMS | 2512 | 1,390 | ₹9.16 · 1,390 in stock | View |
 | FPL2512FR200TS#C18164315FOJAN · 2512 | FOJAN | 2512 | 9,050 | ₹9.13 · 9,050 in stock | View |
 | LR2512H-22R200F2#C5141276RALEC · 2512 | RALEC | 2512 | 1,430 | ₹18.15 · 1,430 in stock | View |
 | TGL251220FR200E04Z#C881017EVER OHMS · 2512 | EVER OHMS | 2512 | 1,845 | ₹19.04 · 1,845 in stock | View |
 | TLRP3A30DR200FTE#C4025176TE Connectivity · 2512 | TE Connectivity | 2512 | 60 | ₹109.72 · 60 in stock | View |
