YAGEODatasheet (PDF)

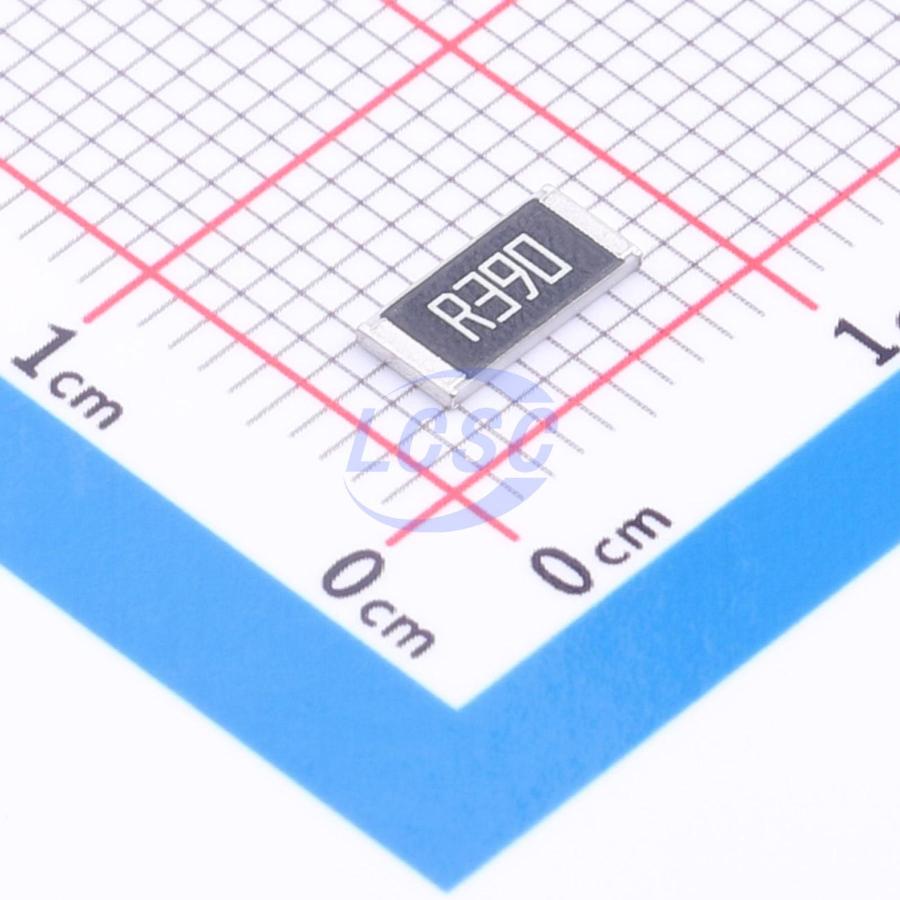

PT2512FK-7W0R39L
390mΩ 2W Thick Film Resistor ±75ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 0.39Ω ±1% 2W 2512
- Manufacturer
- YAGEO
- Manufacturer part #
- PT2512FK-7W0R39L
- Store part #
- C875887
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,985 in stock
#C875887
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.36 | ₹151.80 |
| 50+ | ₹24.16 | ₹1,208.00 |
| 150+ | ₹21.49 | ₹3,223.50 |
| 500+ | ₹18.16 | ₹9,080.00 |
| 2,500+ | ₹16.68 | ₹41,700.00 |
| 4,000+ | ₹15.80 | ₹63,200.00 |
5 × ₹30.36
₹151.80
excl. GST
₹179.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT2512FK-7W0R39L
₹151.80 for 5 + GST
Specifications
- Resistance
- 390mΩ
- Power(Watts)
- 2W
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.064 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CRH2512FR390E04Z#C176055EVER OHMS · 2512 | EVER OHMS | 2512 | 10 | ₹8.98 · 10 in stock | View |
 | FPL2512FR390TS#C42372086FOJAN · 2512 | FOJAN | 2512 | 40 | ₹8.43 · 40 in stock | View |
 | RLP25FEER390#C7421587TA-I Tech · 2512 | TA-I Tech | 2512 | 240 | ₹10.07 · 240 in stock | View |
 | HoRS2512-2W-390mR-1%#C5127863Milliohm · 2512 | Milliohm | 2512 | 7,480 | ₹14.84 · 7,480 in stock | View |
| CRM2512AFX-R390ELF#C19947146BOURNS · 2512 | BOURNS | 2512 | On request | Price on request | Quote | |
