YAGEODatasheet (PDF)

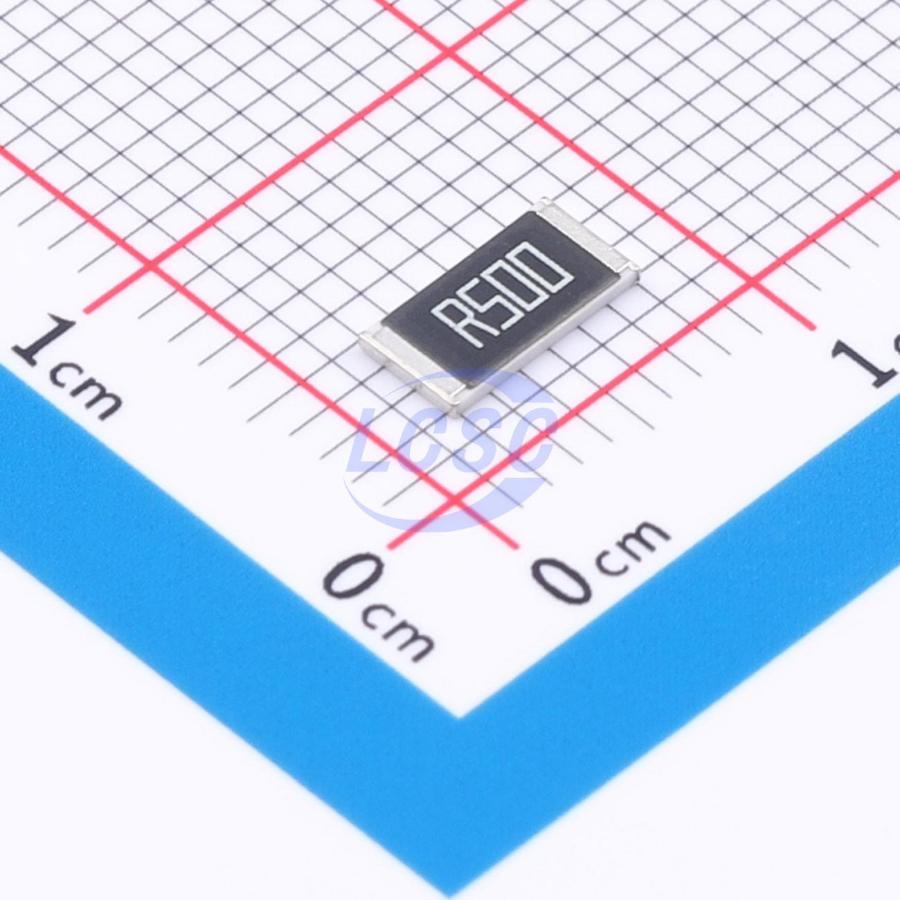

PT2512JK-070R5L
500mΩ 1W Thick Film Resistor ±5% ±75ppm/℃ 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 0.5Ω ±5% 1W 2512
- Manufacturer
- YAGEO
- Manufacturer part #
- PT2512JK-070R5L
- Store part #
- C6629768
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,000 in stock
#C6629768
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.89 | ₹94.45 |
| 50+ | ₹15.11 | ₹755.50 |
| 150+ | ₹13.50 | ₹2,025.00 |
| 500+ | ₹11.47 | ₹5,735.00 |
| 2,500+ | ₹10.58 | ₹26,450.00 |
| 4,000+ | ₹10.04 | ₹40,160.00 |
5 × ₹18.89
₹94.45
excl. GST
₹111.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT2512JK-070R5L
₹94.45 for 5 + GST
Specifications
- Resistance
- 500mΩ
- Power(Watts)
- 1W
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±5%
- Temperature Coefficient
- ±75ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.063 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RTT25R50JTE#C159156RALEC · 2512 | RALEC | 2512 | 2,520 | ₹3.44 · 2,520 in stock | View |
 | FRL2512JR500TS#C2934382FOJAN · 2512 | FOJAN | 2512 | 2,580 | ₹3.92 · 2,580 in stock | View |
 | GR2512J0R5T4G00#C49655665GiantOhm · 2512 | GiantOhm | 2512 | 640 | ₹2.40 · 640 in stock | View |
 | RLT25R50JTE#C5141216RALEC · 2512 | RALEC | 2512 | 160 | ₹3.62 · 160 in stock | View |
 | 25121WJ050KT4E#C621282UNI-ROYAL · 2512 | UNI-ROYAL | 2512 | 5,830 | ₹7.67 · 5,830 in stock | View |
