TECH PUBLICDatasheet (PDF)

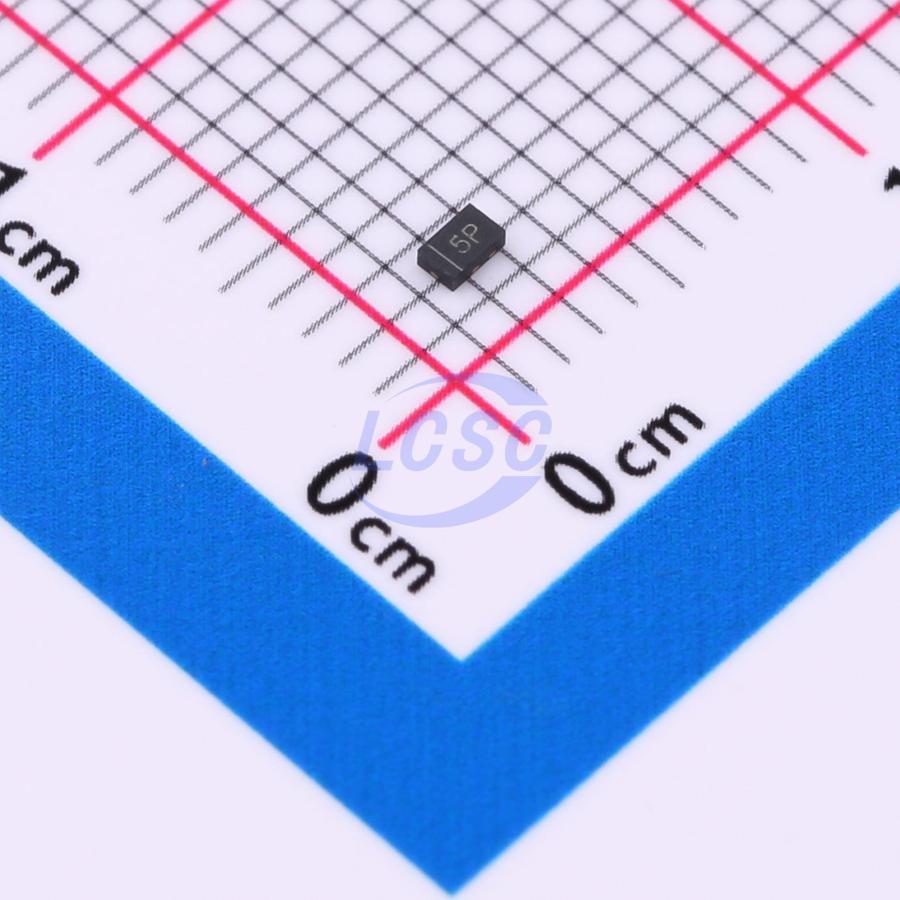

PTVSHC2EN5VU
11VC Clamp 110A@8/20us Ipp DFN1610-2
DFN1610-2RoHSActive
5VWM 11VC DFN1610-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PTVSHC2EN5VU
- Store part #
- C22435112
- Package / case
- DFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
790 in stock
#C22435112
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.39 | ₹93.90 |
| 100+ | ₹7.42 | ₹742.00 |
| 300+ | ₹6.44 | ₹1,932.00 |
| 3,000+ | ₹5.70 | ₹17,100.00 |
| 6,000+ | ₹5.12 | ₹30,720.00 |
| 9,000+ | ₹4.82 | ₹43,380.00 |
10 × ₹9.39
₹93.90
excl. GST
₹110.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVSHC2EN5VU
₹93.90 for 10 + GST
Specifications
- Clamping Voltage
- 11V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 110A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.2kW@8/20us
- Voltage - Breakdown
- 6V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
Applications
- Power Management
- Industrial Application
- Power Supply Protection
- Many other portable devices
Key features
- 1200W peak pulse power (8/20 us)
- Low leakage: nA level
- Low operating voltage: 5V
- Ultra Low Leakage: nA Level
- Ultra low clamping voltage
- One power line protects
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 110A (8/20μs)
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPTVS0571P#C2844712TECH PUBLIC · DFN1610-2 | TECH PUBLIC | DFN1610-2 | 4,575 | ₹27.32 · 4,575 in stock | View |
 | ESDA7P60-1U1M#C7202956TECH PUBLIC · DFN1610-2 | TECH PUBLIC | DFN1610-2 | 15,080 | ₹11.50 · 15,080 in stock | View |
