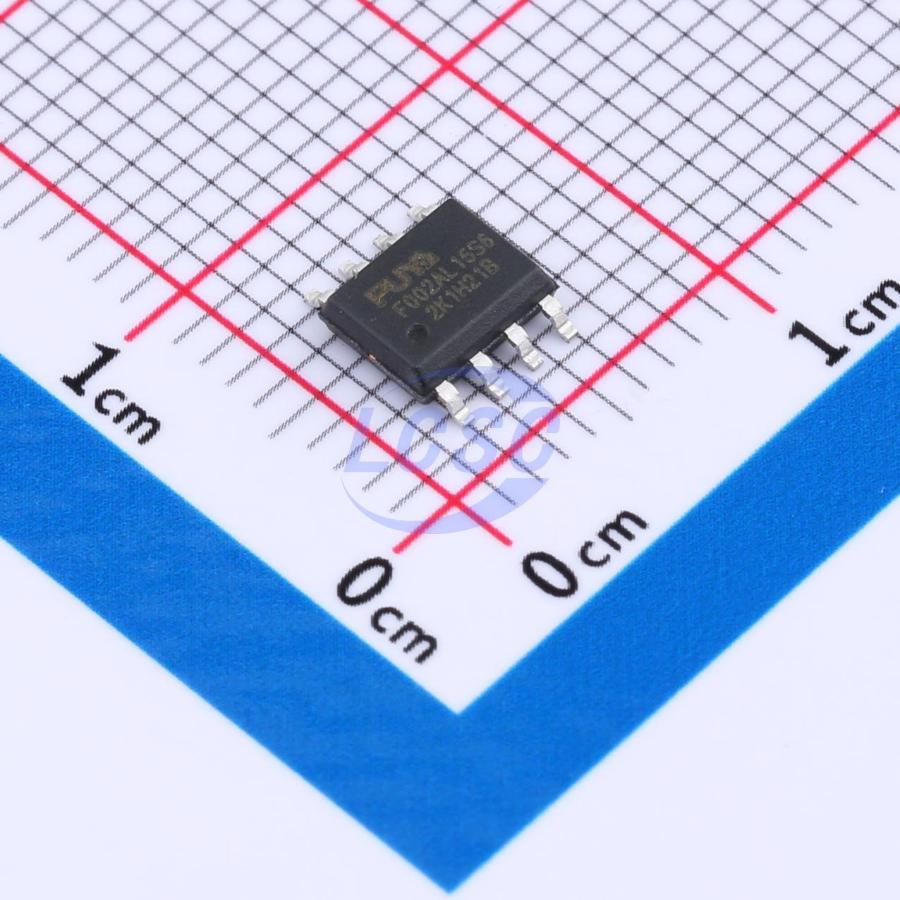

PY32F002AL15S6TU

PY32F002A series microcontrollers are MCUs with high performance 32 - bit ARM Cortex -M0 + core, wide voltage operating range. It has embedded up to 20 Kbytes flash and 3 Kbytes SRAM memory, a maximum operating frequency of 24 MHz, and contains various products in different package types. The chip integrates multi-channel I2C, SPI, USART and other communication peripherals, one channel 12bit ADC, two 16bit timers, and two-channel comparators. PY32F002A series microcontrollers are - 40℃~85℃ and the operating voltage range is 1.7V~5.5V. The chip provides sleep and stop low - power operating modes from meeting different low - power applications. The PY32F002A series of microcontrollers are suitable for various application scenarios, such as controllers, portable devices, PC peripherals, gaming and GPS platforms, industrial applications.

Applications

• controllers
• portable devices
• PC peripherals
• gaming and GPS platforms
• industrial applications

Key features

• Core 32-bit ARM Cortex - M0+ CPU
• Up to 24 MHz operating frequency
• Memories: Maximum 20 Kbytes of flash memory, Up to 3 Kbytes SRAM
• Clock system: Internal 8/24 MHz RC oscillator (HSI), Internal 32.768 KHz RC oscillator (LSI), 4 to 24 MHz crystal oscillator (HSE)
• Power management and reset: Operating voltage: 1.7V to 5.5V, Low power modes: Sleep and Stop, Power-on/Power-down reset (POR/PDR), Brownout Detect Reset (BOR)
• General purpose input and output (I/O): Up to 18 I/Os, all available as external interrupts, Driver current 8mA
• 1 x 12-bit ADC: Supports up to 9 external input channels, Input voltage conversion range: 0~VCC
• Timer: A 16bit advanced control timer (TIM1), 1 general purpose 16-bit timers (TIM16), A low-power timer (LPTIM), supports wakeup from stop mode, An Independent Watchdog Timer (IWDT), A SysTick timer
• Communication Interface: A Serial Peripheral Interface (SPI), 1 Universal Synchronous / Asynchronous Transceivers (USARTs) with automatic baudrate detection, A I2C interface, supports standard mode (100 kHz), Fast mode (400 kHz), supports 7-bit addressing mode
• Hardware CRC-32 module
• Two comparators
• Unique UID
• Serial wire debug (SwD)
• Working temperature: - 40 to 85°C
• Package: SOP8, SOP16, ESSOP10, TSSOP20, QFN16, QFN20, MSOP10
