QNHCHIPDatasheet (PDF)

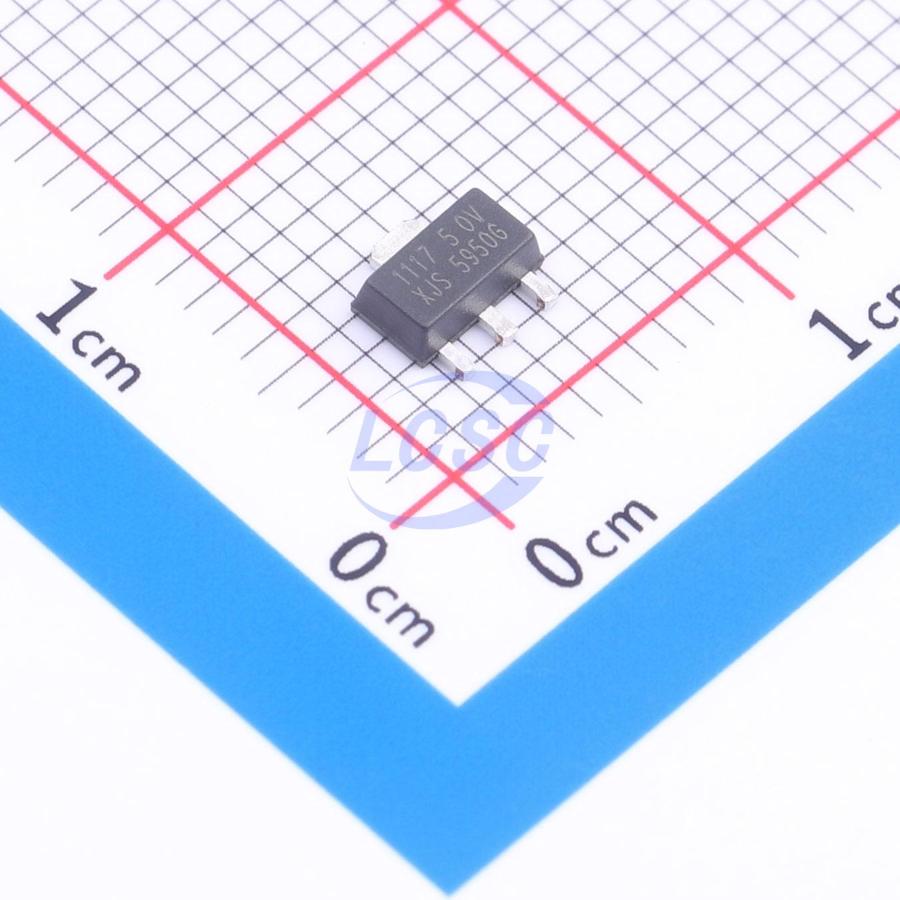

QN1117-5.0VS
5V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
- Manufacturer
- QNHCHIP
- Manufacturer part #
- QN1117-5.0VS
- Store part #
- C50379988
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C50379988
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.61 | ₹76.10 |
| 100+ | ₹6.05 | ₹605.00 |
| 300+ | ₹5.27 | ₹1,581.00 |
| 1,000+ | ₹4.68 | ₹4,680.00 |
| 5,000+ | ₹4.21 | ₹21,050.00 |
| 10,000+ | ₹3.97 | ₹39,700.00 |
10 × ₹7.61
₹76.10
excl. GST
₹89.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
QN1117-5.0VS
₹76.10 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.16 g
Overview
QN1117 is a series of low dropout regulators with a 1.3V dropout voltage at 1A load current. Quiescent current is extremely low at only 2mA. In addition to fixed output voltage versions (1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V), an adjustable version is available that requires only two external resistors to provide output voltages from 1.25V to 12V. The series features thermal shutdown to ensure stability of the IC and power supply system. Trimming technology guarantees output voltage accuracy within 2%, with higher accuracy options (e.g., 1%) available upon request. Available in SOT-223, TO-252, and SOT89 packages.
Applications
- Computer motherboards and graphics cards
- LCD monitors and TVs
- DVD decoder boards
- ADSL modems
- Switching power supply post-stage voltage regulators
Key features
- Output current up to 1A
- Operating input voltage range up to 15V
- Line regulation: 0.03%/V (typical)
- Quiescent current: 2mA (typical)
- Load regulation: 0.2%/A (typical)
- Ambient temperature: -40°C ~ 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| AMS1117-5.0VS#C50379992QNHCHIP · SOT-89 | QNHCHIP | SOT-89 | 700 | ₹4.79 · 700 in stock | View | |
