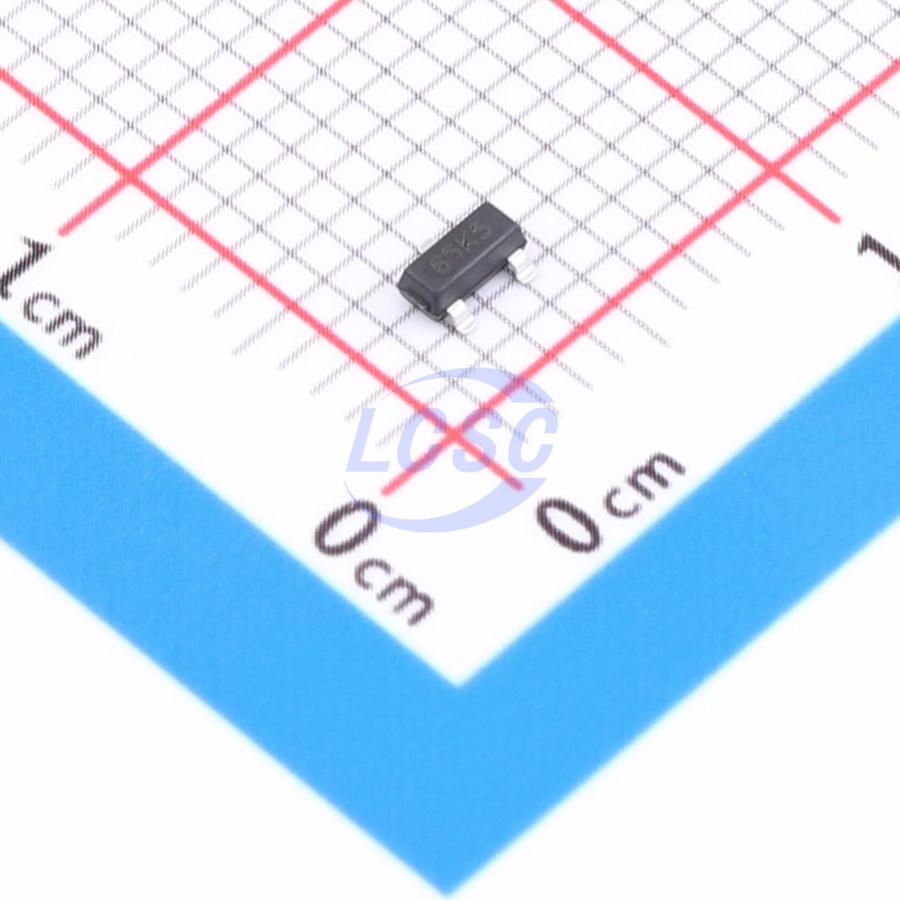

QN6206P182MR
1.8V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
- Manufacturer
- QNHCHIP
- Manufacturer part #
- QN6206P182MR
- Store part #
- C50379999
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,700 in stock
#C50379999
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.09 | ₹104.50 |
| 500+ | ₹1.63 | ₹815.00 |
| 3,000+ | ₹1.38 | ₹4,140.00 |
| 6,000+ | ₹1.22 | ₹7,320.00 |
| 24,000+ | ₹1.08 | ₹25,920.00 |
| 51,000+ | ₹1.01 | ₹51,510.00 |
50 × ₹2.09
₹104.50
excl. GST
₹123.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
QN6206P182MR
₹104.50 for 50 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Output Current
- 120mA
- Operating Voltage
- 6V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.034 g
Overview
The QN6206 series are high-precision, low-power, high-voltage, positive voltage regulators fabricated using CMOS and laser trimming technology. This series delivers high output current while significantly reducing dropout voltage. The series is compatible with low-ESR ceramic capacitors. The foldback circuit of the current limiter also serves as an output current limiter and protection circuit for the output pin.
Applications
- Mobile phones
- Communication equipment
- Portable gaming consoles
- Cameras and video systems
- Reference voltage sources
- Battery-powered devices
Key features
- Maximum output current: 300mA
- Dropout voltage: 200mV @ IOUT = 100mA
- Input voltage range: up to 6.0V
- High accuracy: ±2%
- Low quiescent current: 8uA (typical)
- Excellent line regulation
- Suitable for use as voltage regulator and voltage reference
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6206P182MR#C50593816QNHCHIP · SOT-23 | QNHCHIP | SOT-23 | 300 | ₹2.09 · 300 in stock | View |
