QNHCHIPDatasheet (PDF)

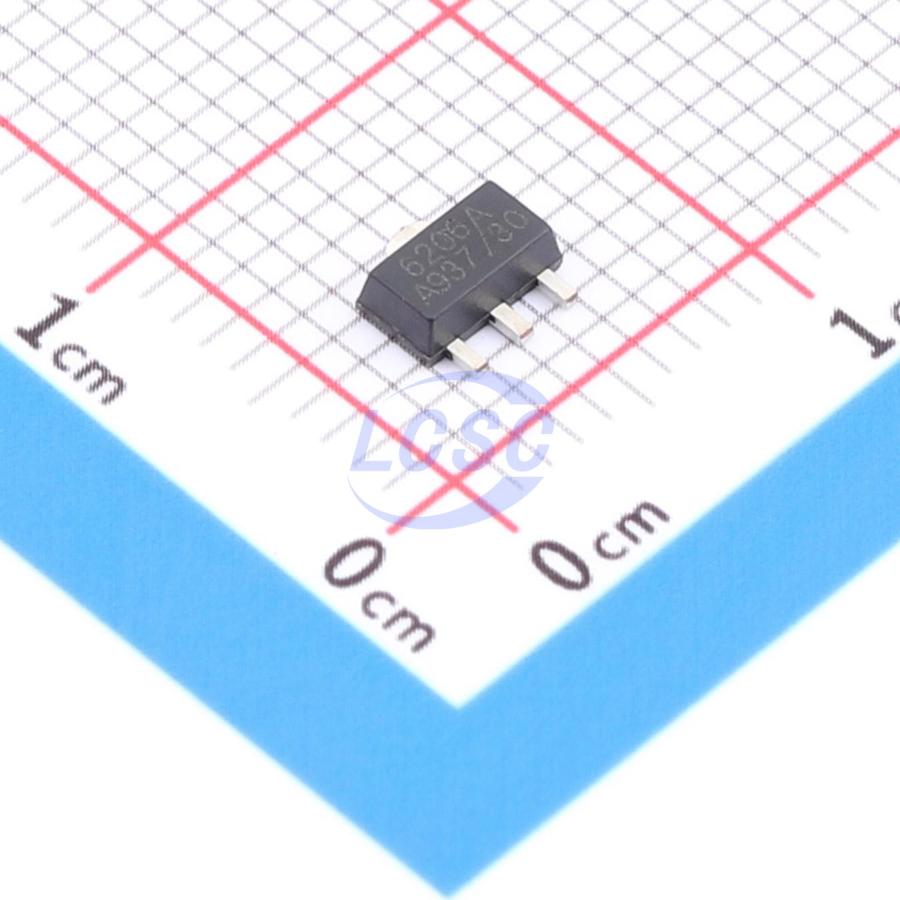

QN6206P302PR
Positive SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
- Manufacturer
- QNHCHIP
- Manufacturer part #
- QN6206P302PR
- Store part #
- C42444776
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C42444776
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.40 | ₹54.00 |
| 100+ | ₹4.29 | ₹429.00 |
| 300+ | ₹3.73 | ₹1,119.00 |
| 1,000+ | ₹3.32 | ₹3,320.00 |
| 5,000+ | ₹2.99 | ₹14,950.00 |
| 10,000+ | ₹2.82 | ₹28,200.00 |
10 × ₹5.40
₹54.00
excl. GST
₹63.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
QN6206P302PR
₹54.00 for 10 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.149 g
Overview
The QN6206 series are high-precision, low-power, high-voltage, positive-voltage regulators manufactured using CMOS and laser trimming technology. This series delivers high output current with very low dropout voltage. The series is compatible with low-ESR ceramic capacitors. The foldback circuit of its current limiter also serves as an output current limiter and protection circuit for the output pin.
Applications
- Mobile phones
- Communication equipment
- Portable gaming consoles
- Cameras and video systems
- Voltage references
- Battery-powered devices
Key features
- Maximum output current: 300mA (VIN = 4.3 V, VOUT = 3.3 V)
- Dropout voltage: 200 mV @ IOUT = 100 mA
- Input voltage range: up to 6.0V
- High accuracy: ±2%
- Low quiescent current: 8uA (typical)
- Excellent line regulation
- Suitable for use as voltage regulator and voltage reference
