QNHCHIPDatasheet (PDF)

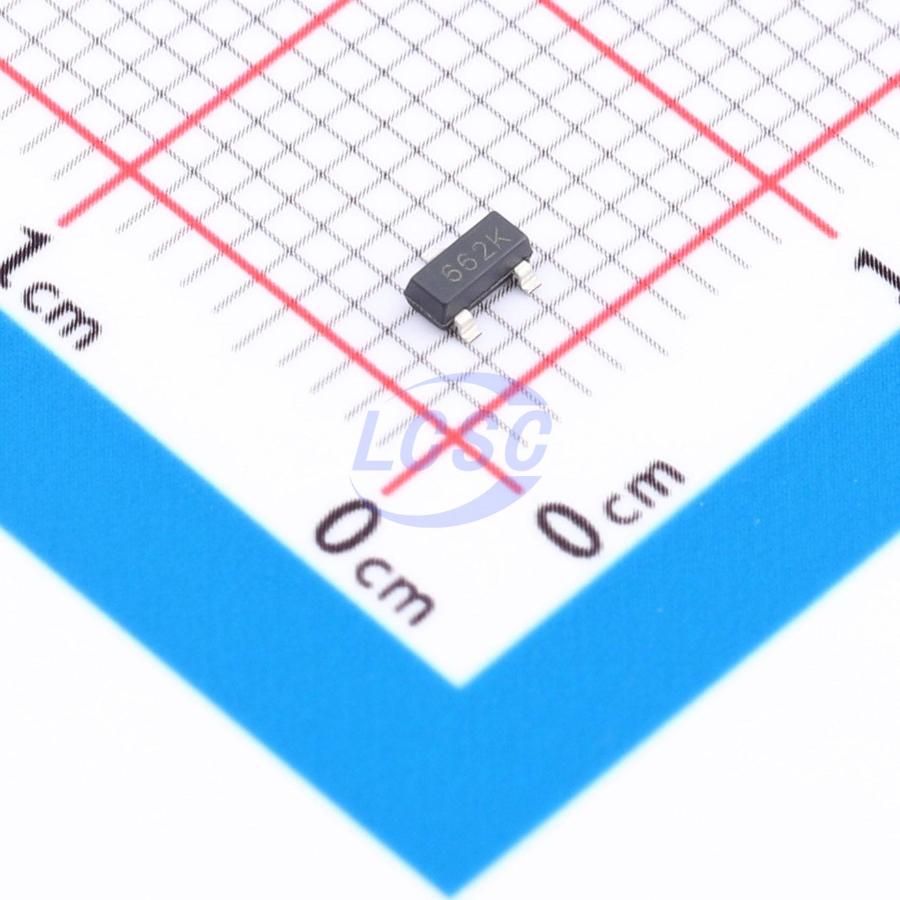

QN6206P332MR
3.3V Positive SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
- Manufacturer
- QNHCHIP
- Manufacturer part #
- QN6206P332MR
- Store part #
- C42444769
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,550 in stock
#C42444769
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.42 | ₹121.00 |
| 500+ | ₹1.89 | ₹945.00 |
| 3,000+ | ₹1.60 | ₹4,800.00 |
| 6,000+ | ₹1.43 | ₹8,580.00 |
| 24,000+ | ₹1.27 | ₹30,480.00 |
| 51,000+ | ₹1.19 | ₹60,690.00 |
50 × ₹2.42
₹121.00
excl. GST
₹142.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
QN6206P332MR
₹121.00 for 50 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃
- Supply Current (Iq)
- 9uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.039 g
Overview
The QN6206 series are high-precision, low-power, high-voltage, positive-voltage regulators manufactured using CMOS and laser trimming technology. This series delivers high output current with very low dropout voltage. The series is compatible with low-ESR ceramic capacitors. The foldback circuit of its current limiter also serves as an output current limiter and protection circuit for the output pin.
Applications
- Mobile phones
- Communication equipment
- Portable gaming consoles
- Cameras and video systems
- Voltage references
- Battery-powered devices
Key features
- Maximum output current: 300mA (VIN = 4.3 V, VOUT = 3.3 V)
- Dropout voltage: 200 mV @ IOUT = 100 mA
- Input voltage range: up to 6.0V
- High accuracy: ±2%
- Low quiescent current: 8uA (typical)
- Excellent line regulation
- Suitable for use as voltage regulator and voltage reference
