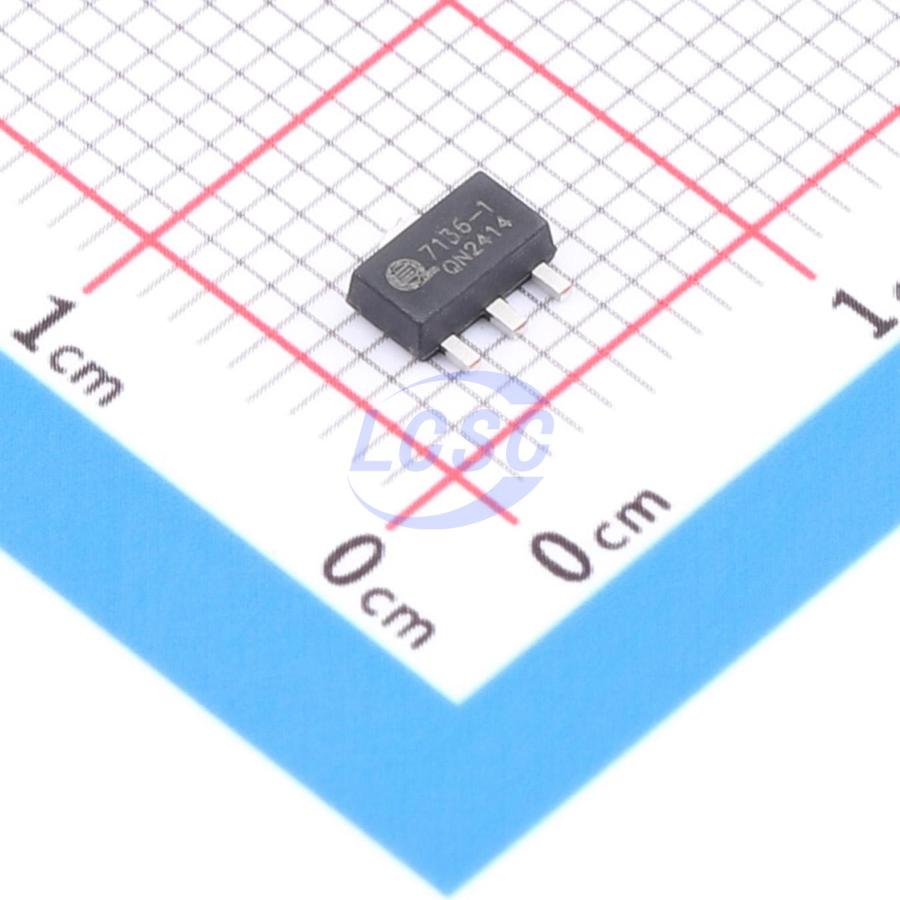

QN7136-1PG
3.6V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
IC REG LINEAR 3.6V 30mA SOT-89
- Manufacturer
- QNHCHIP
- Manufacturer part #
- QN7136-1PG
- Store part #
- C42444784
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C42444784
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.40 | ₹54.00 |
| 100+ | ₹4.29 | ₹429.00 |
| 300+ | ₹3.73 | ₹1,119.00 |
| 1,000+ | ₹3.32 | ₹3,320.00 |
| 5,000+ | ₹2.99 | ₹14,950.00 |
| 10,000+ | ₹2.82 | ₹28,200.00 |
10 × ₹5.40
₹54.00
excl. GST
₹63.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
QN7136-1PG
₹54.00 for 10 + GST
Specifications
- Output Voltage
- 3.6V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 30mA
- Operating Voltage
- 28V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.155 g
Overview
The QN71XX-1 series is a group of three-terminal low-power high-voltage regulators implemented in CMOS technology. The input voltage can reach up to 28V, with multiple fixed output voltage options ranging from 2.1V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current. Although primarily designed as fixed-voltage regulators, these devices can also be used with external components to achieve adjustable voltage and current.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | QN7536-1PG#C42444792QNHCHIP · SOT-89 | QNHCHIP | SOT-89 | 980 | ₹5.44 · 980 in stock | View |
