QNHCHIPDatasheet (PDF)

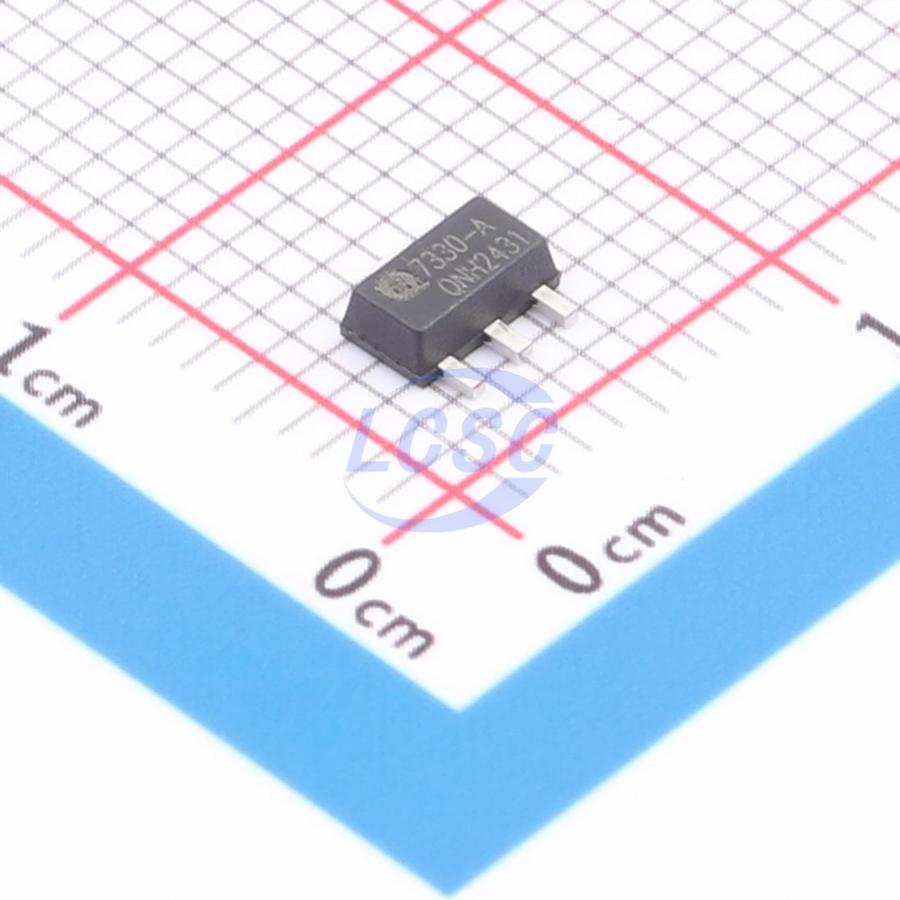

QN7330-APG
3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
IC REG LINEAR 3V 250mA SOT-89
- Manufacturer
- QNHCHIP
- Manufacturer part #
- QN7330-APG
- Store part #
- C42444797
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C42444797
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.17 | ₹71.70 |
| 100+ | ₹5.61 | ₹561.00 |
| 300+ | ₹4.84 | ₹1,452.00 |
| 1,000+ | ₹4.26 | ₹4,260.00 |
| 5,000+ | ₹3.80 | ₹19,000.00 |
| 10,000+ | ₹3.56 | ₹35,600.00 |
10 × ₹7.17
₹71.70
excl. GST
₹84.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
QN7330-APG
₹71.70 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 250mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.163 g
Overview
The 73-A series is a group of three-terminal, low-power, high-voltage regulators implemented in CMOS technology. They allow input voltages up to 18V. The series features an extremely low quiescent current with a typical value of 2μA. They offer multiple fixed output voltages ranging from 2.1V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current. Although primarily designed as fixed-voltage regulators, these devices can be used with external components to achieve adjustable voltage and current.
Applications
- Battery-powered devices
- Audio/video equipment
- Communication devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature drift coefficient
- Ultra-low quiescent current: 2μA (typical)
- High input voltage (up to 18V)
- Maximum output current: 400mA
- Output voltage accuracy: ±2% tolerance
- TO92, SOT89, and SOT23 packages
