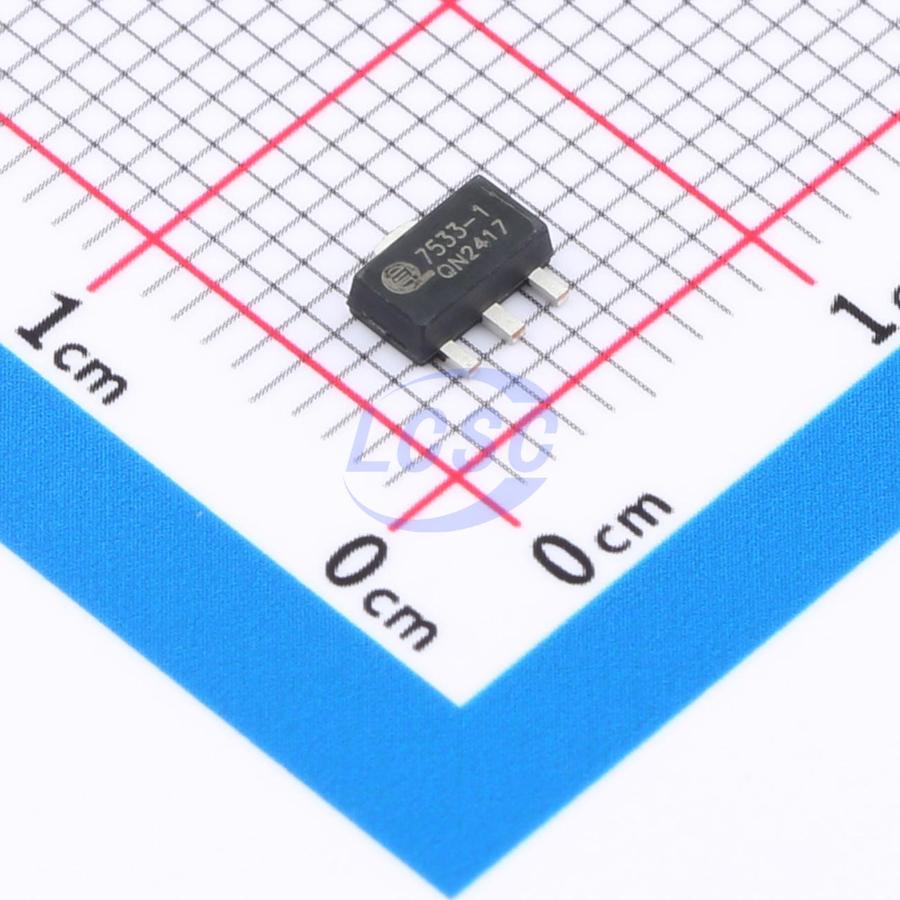

QN7533-1
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89
SOT-89RoHSActive
Low Dropout (LDO) Linear Regulator
- Manufacturer
- QNHCHIP
- Manufacturer part #
- QN7533-1
- Store part #
- C45360127
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C45360127
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.47 | ₹64.70 |
| 100+ | ₹5.11 | ₹511.00 |
| 300+ | ₹4.43 | ₹1,329.00 |
| 1,000+ | ₹3.93 | ₹3,930.00 |
| 5,000+ | ₹3.52 | ₹17,600.00 |
| 10,000+ | ₹3.32 | ₹33,200.00 |
10 × ₹6.47
₹64.70
excl. GST
₹76.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
QN7533-1
₹64.70 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 24V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.153 g
Overview
QN75XX is a low-dropout linear regulator implemented in CMOS technology. It supports an input voltage up to 24V, offers several fixed output voltage options ranging from 2.8V to 9.0V, and features low quiescent current consumption. It is widely used in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
- Wireless communication equipment
Key features
- Low power consumption
- Low input/output voltage differential
- Low temperature drift coefficient
- Withstand voltage up to 28V
- Quiescent current 1.5μA
- Output voltage accuracy: ±2%
- High output current 100mA
